Unistar Mount

Started by Larry N, 08/09/2005 12:01PM
Post Reply
Posted 08/09/2005 12:01PM Opening Post
Larry Nelson
View public profile Send a private message to Larry Nelson Find more posts by Larry Nelson Find threads started by Larry Nelson
Forum Member

Join Date: Sep 2003

Location: Berlin NJ, US

Posts: 7

Hi Folks
I purchased a Unistar Basic (older Model) here on Astromart with the dovetail that has four tapped 1/4"-20 screws holes in it. I'm trying to figure out the best way to attach my C-102 refractor and C-8 SCT to the dovetail. If anyone has a suggestion please let me know I don't want to start spending lots of money on a saddle & mounting plates that won't work well. wink
Thanks
Quote
Posted 08/09/2005 01:51PM | Edited 08/09/2005 01:56PM #1
Rod Nabholz
View public profile Send a private message to Rod Nabholz Find more posts by Rod Nabholz Find threads started by Rod Nabholz
Forum Member
rnabholz's avatar

Join Date: Aug 2003

Location: Independence IA, US

Posts: 58

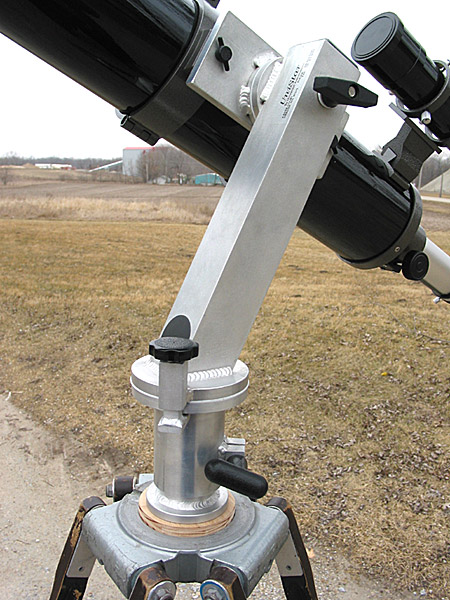

I am not familiar with the C-8 never having owned one, but I had a refractor on an early Unistar. My holes were not threaded, so I could simply remove the dovetail from the rings and bolt through the plate into the rings.

If your configuration is different, I have used a good hardwood like Maple to make adapters to mate scopes and mounts to good effect. Much easier than working metal and very hard and strong

Attached Image:

rnabholz's attachment for post 94783
Quote
Rod Nabholz
Home Built Astronomy Projects
http://www.homebuiltastronomy.com/
Wild Bird Photography
http://www.wildsideiowa.com
