Stargazer Steve Conversion Project

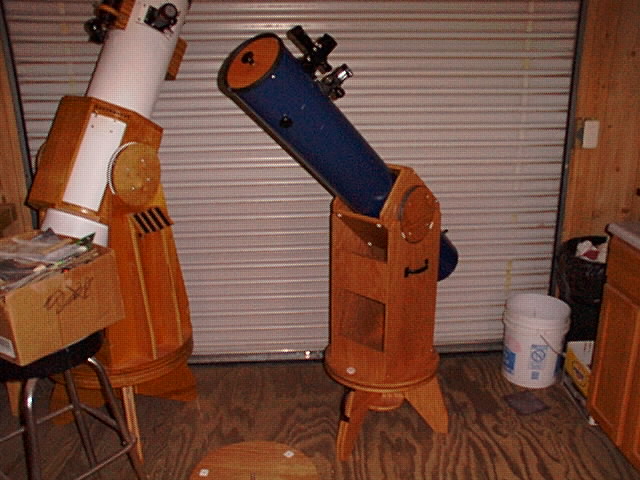

This is a Stargazer Steve 6" Tube that I built a new mount and modified the tube. The scope has 2 bases, one for standing up, the other for sitting down. I took out the massive 5 lb counterwieght in the back, moved the mirror down as far as I could, moved the focuser back, put the rigel finder on top of the old focuser hole, added a 6x30 finder, scope works well.

Attached Image:

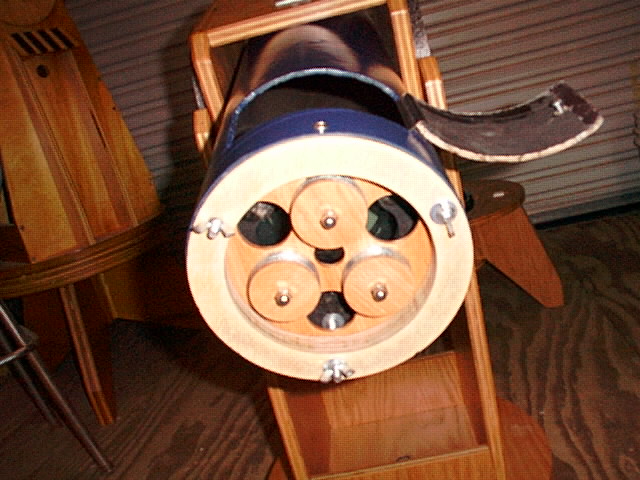

New mirror cell, I routed out the old backing plate, took out the massive counterwieght, installed a new backling plate with ventilation holes, and 3 smaller 8oz weights. I justed used 2"x1/4" fender washers as the weights since they weigh about 1oz each and are only .25Cents each. Each weight pack has a 2" wood cover and a cap nut to hold the weights on. Can easily add or subtract the weights as needed.

Attached Image:

Steve,
Nice work on your dob. I've seen similar designs on a 6" dob from a semi-pro, and your work reminds me of his fine scopes. Enjoy it and thanks for sharing!
