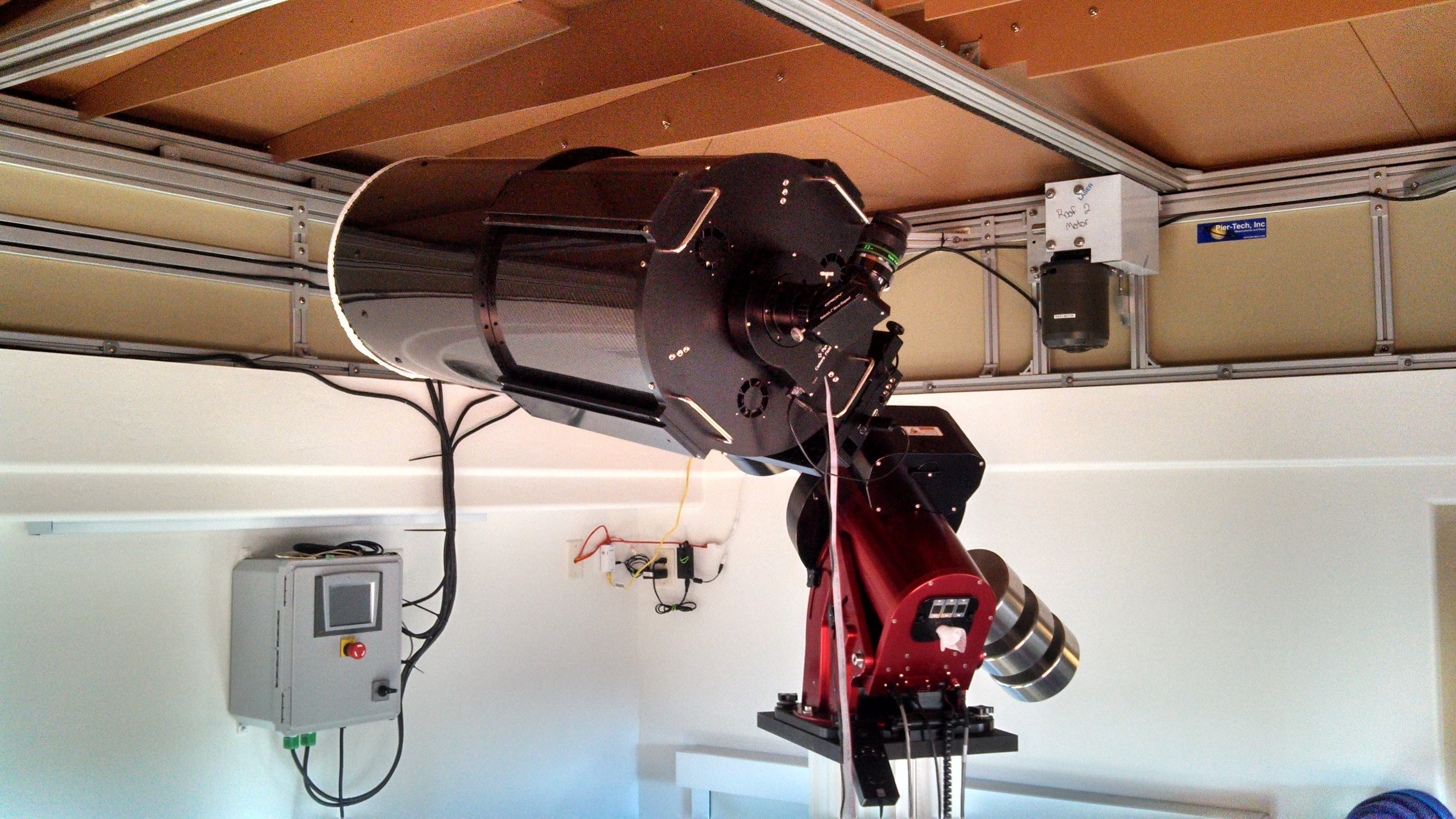

Deep Sky Instruments RC14C - 14.25" Ritchey-Chrétien Telescope

US domestic shipping only

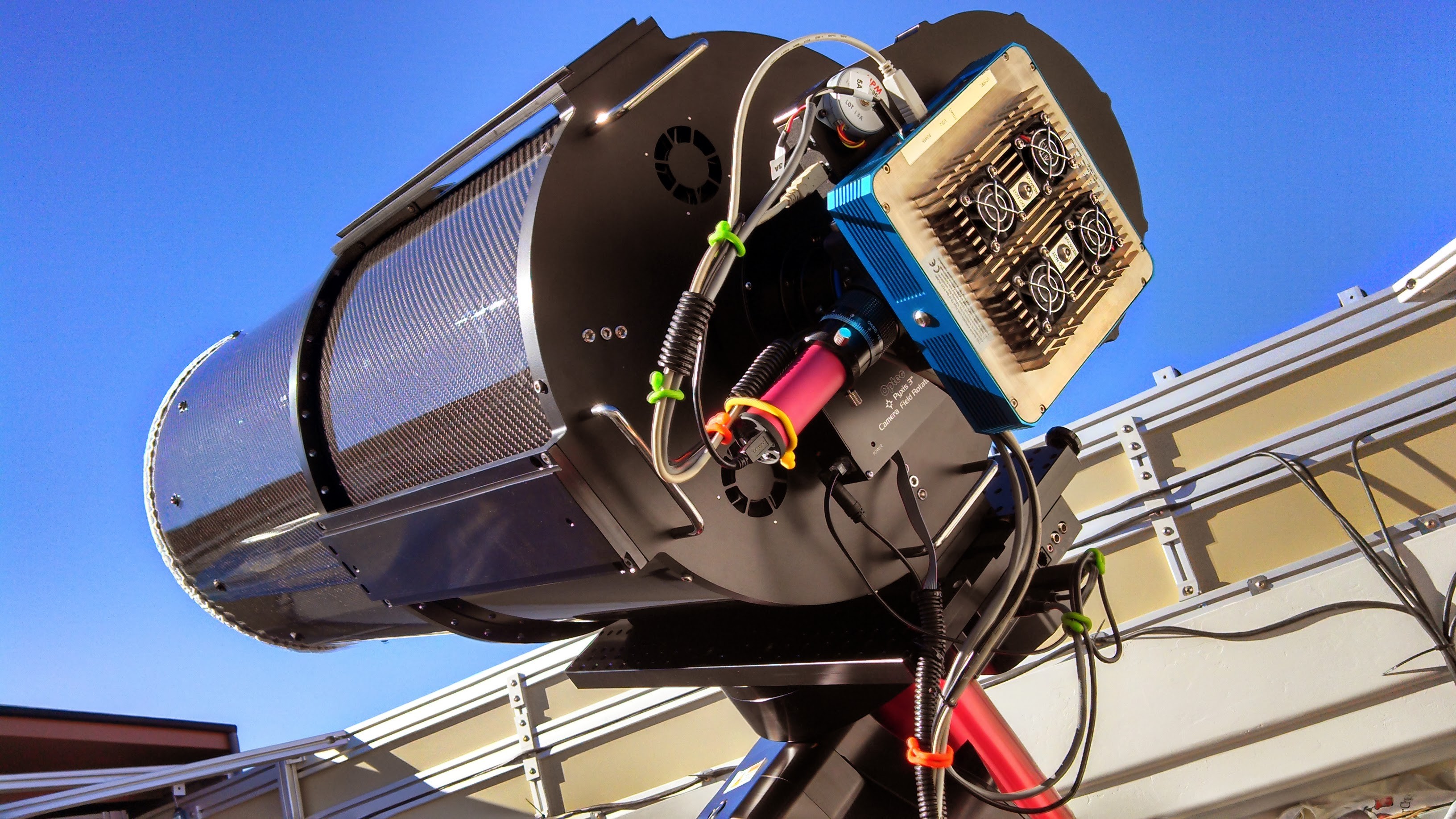

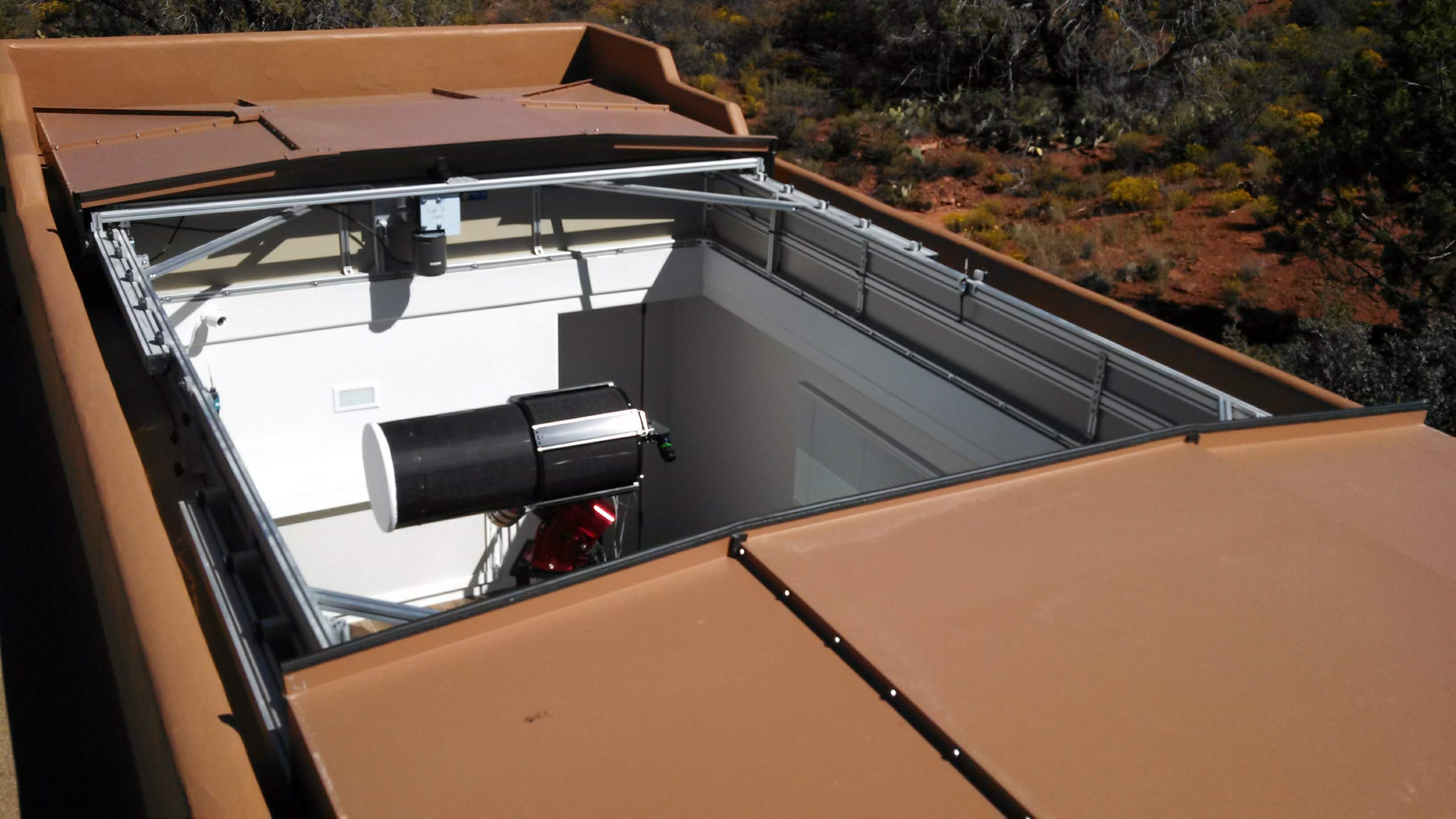

The Deep Sky Instruments (DSI) RC14C is a flagship 14.25-inch f/7.0 true Ritchey-Chrétien astrograph built specifically for advanced astrophotographers and remote observatories. As part of DSI's "TrueRC" series, it features high-end optics paired with a two-element internal field flattener to deliver a perfectly corrected, coma-free imaging circle.

While retired as a mass-production instrument, DSI transitioned to building these systems on a custom-order basis.

Key Technical Specifications:

 Aperture 14.25 inches (362 mm) — 14.625" primary mirror

Focal Length & Ratio: 2534 mm nominal @ f/7.0

Optical Substrate  Pyrex or Fused Quartz with enhanced coatings

Optical Figuring-Paul Jones, Star Instruments

Corrected Image Circle  > 52 mm (2.0"), 1.2 degrees wide

Back Focus 12" total (8.4" usable behind the rear back plate)

OTA Weight 58 lbs bare; 72 lbs with integrated dovetail plates

* DSI 3.5" Optical Interface: Because standard camera adapters caused vignetting on large 16MP+ full-frame sensors (like the Kodak KAF-16803), DSI engineered a proprietary 3.5" x 24 tpi threaded interface built alongside Optec to secure zero-flexure imaging trains.

* Fixed Primary Design: The primary mirror is locked rigidly into place. Focusing is handled strictly via a precision electronic secondary mirror focuser which is fully ASCOM-compliant, permanently eliminating image shift or mirror flop during long exposures.

* Thermal Performance: The optical tube assembly (OTA) utilizes a heavy-duty, ultra-thick glossy carbon fiber tube with integrated aluminum and stainless steel structural parts alongside automated cooling fans to guarantee focus stability under changing night temperatures.

• Collimation Architecture: Mirror tip/tilt cells use three sets of dual-screw push-pull locking points separated by exactly 120 degrees, letting users fine-tune the hyper-critical alignment required by true non-spherical RC mirrors.

Included Items:
DSI RC14C scope

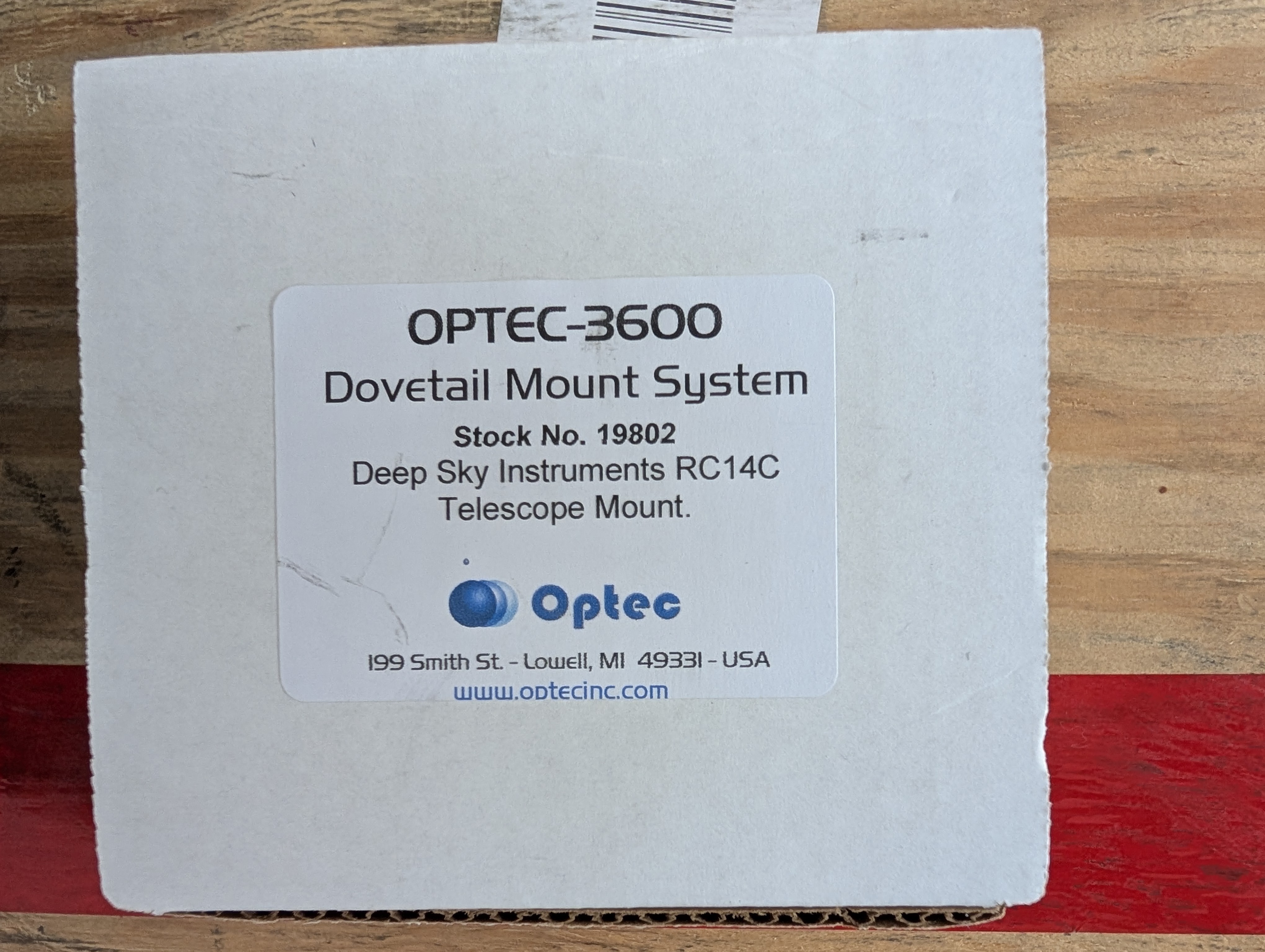

4 - 17" Losmandy Dovetail plates mounted at 4 positions around the carbon tube

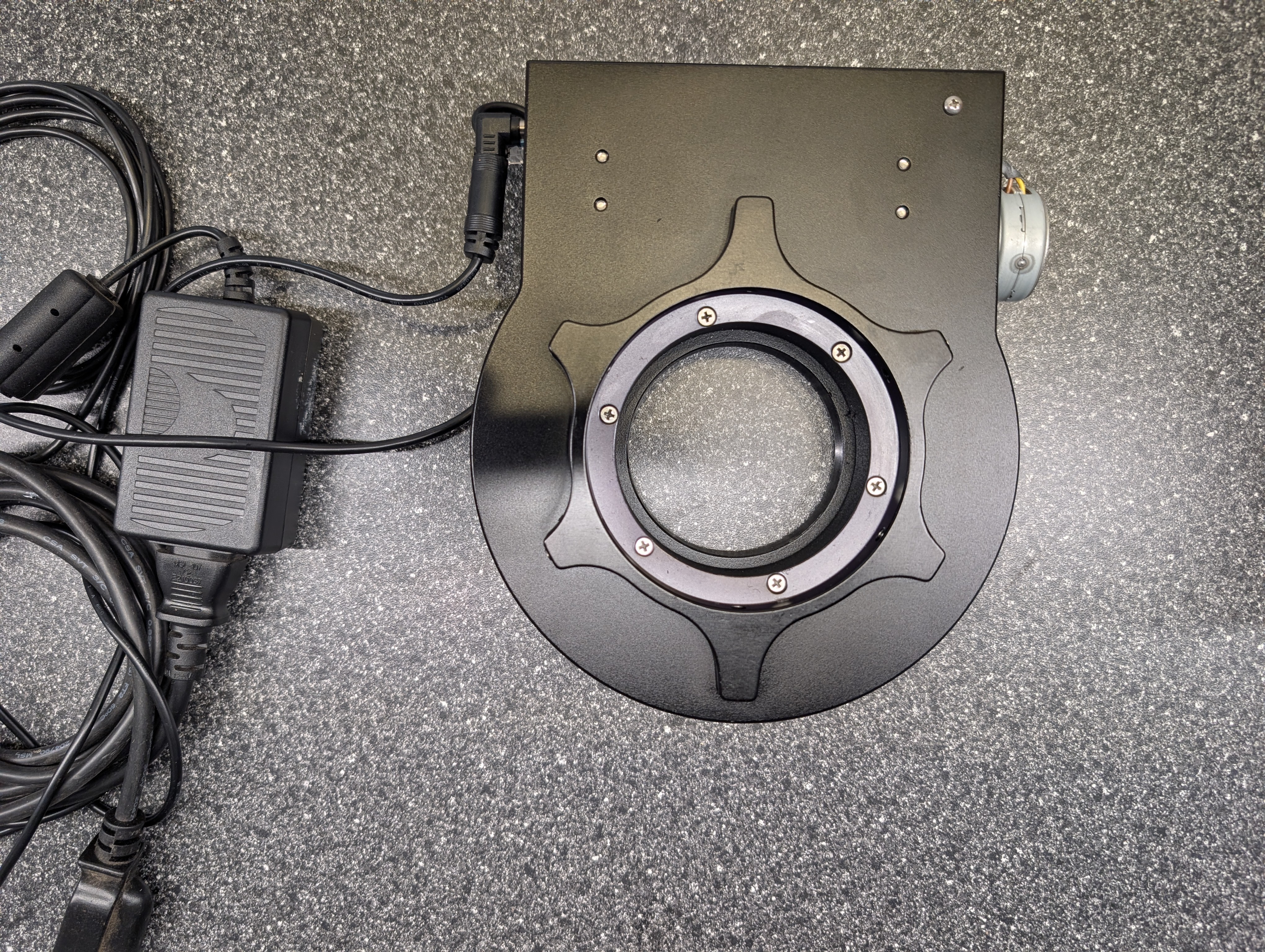

Optec Pyxis 3" instrument Rotator, power supply and cables
Scope Adapter to Pyxis Rotator

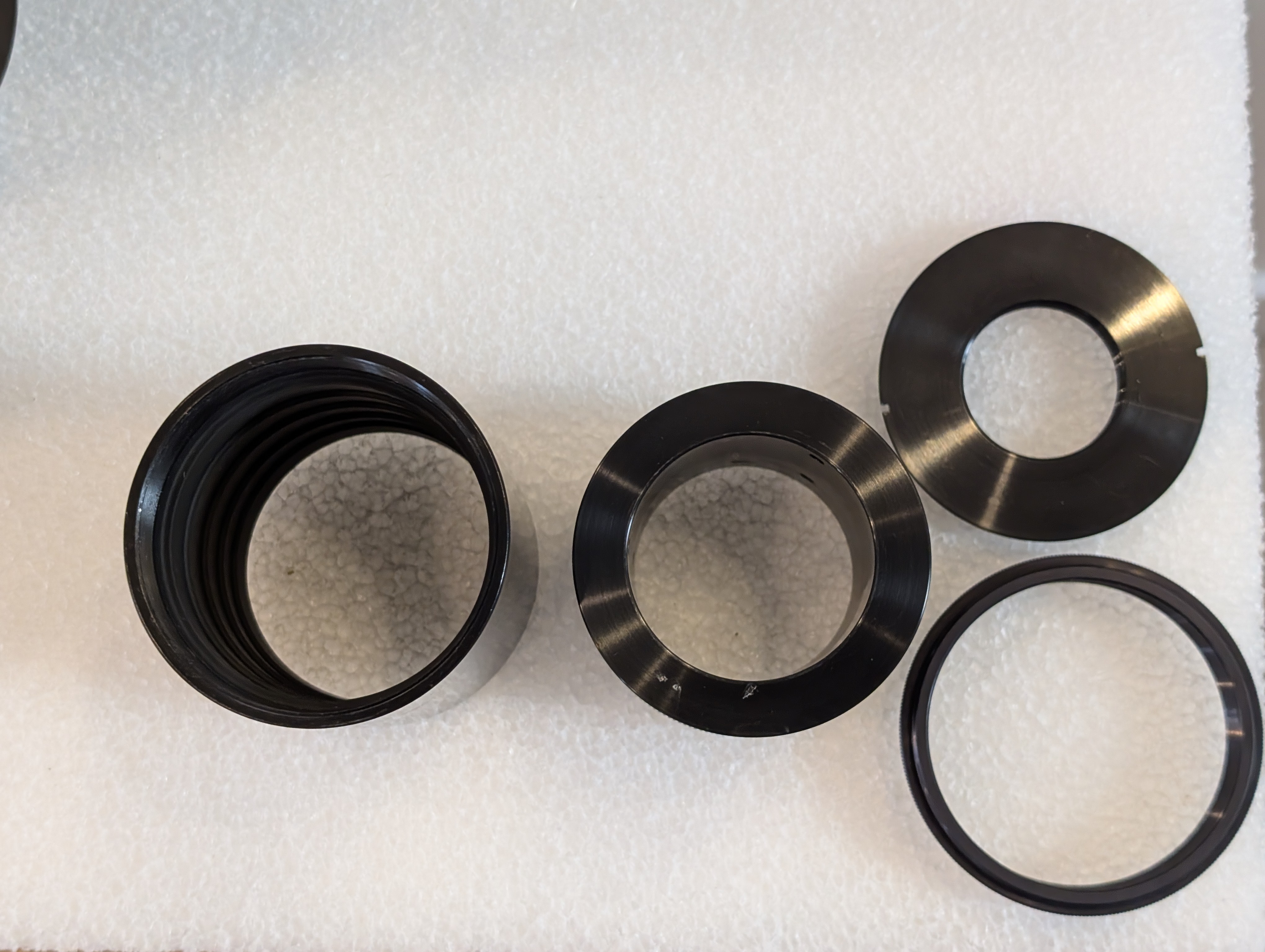

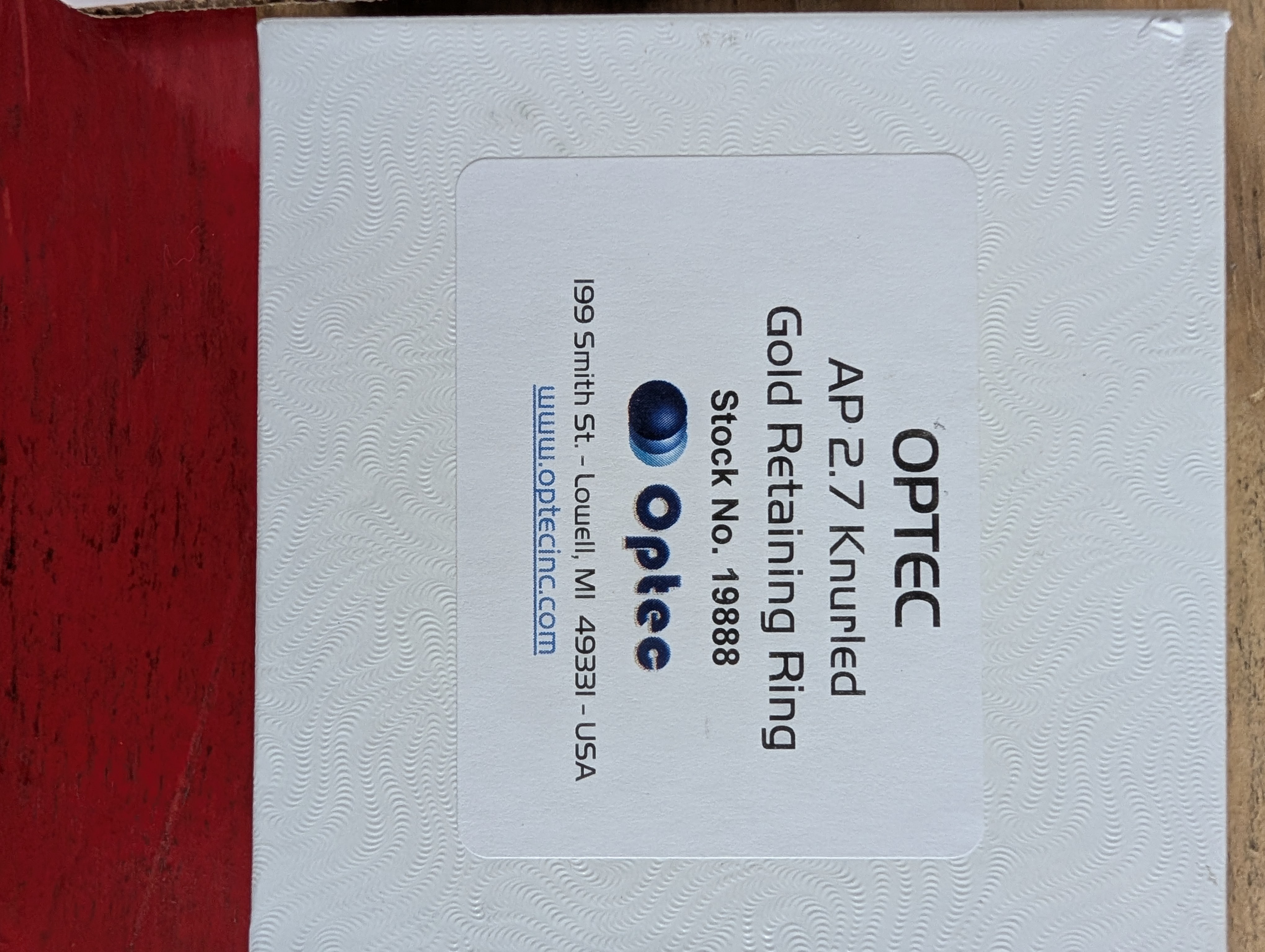

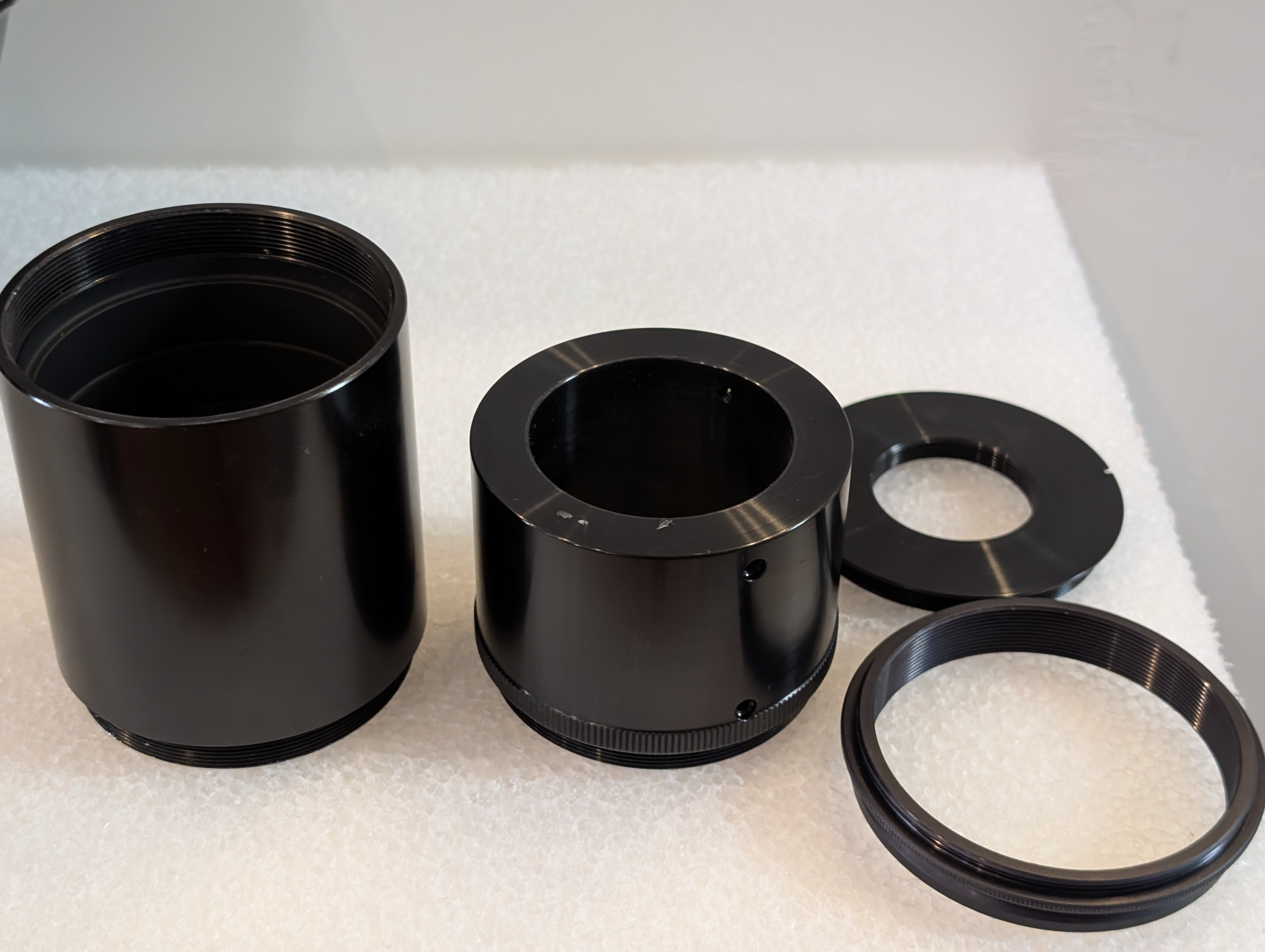

DSI 2.7" Spacer kit
Collimation Laser holder to DSI 2.7" spacers

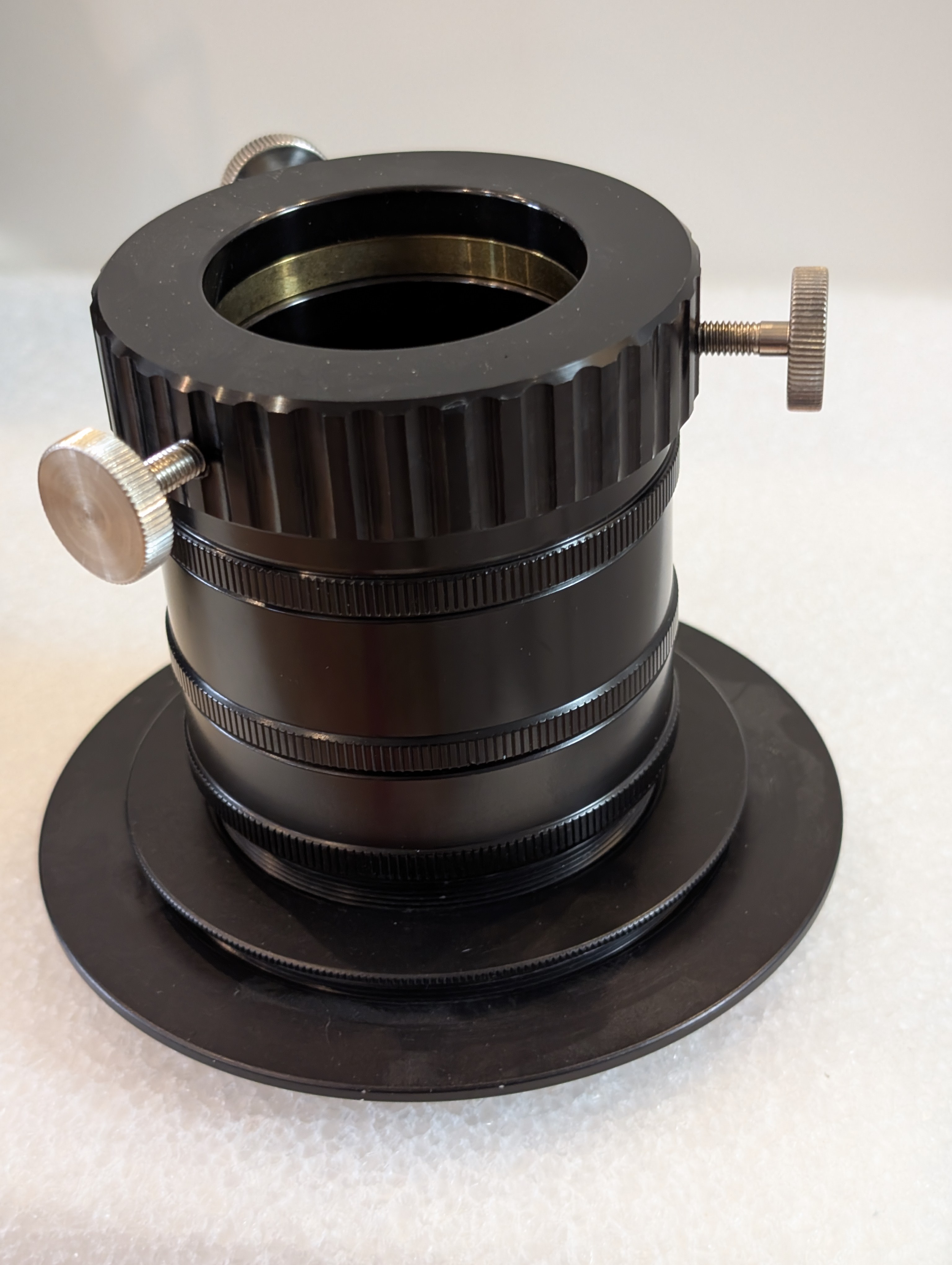

2" Eye Piece adapter to DSI 2.7" spacers

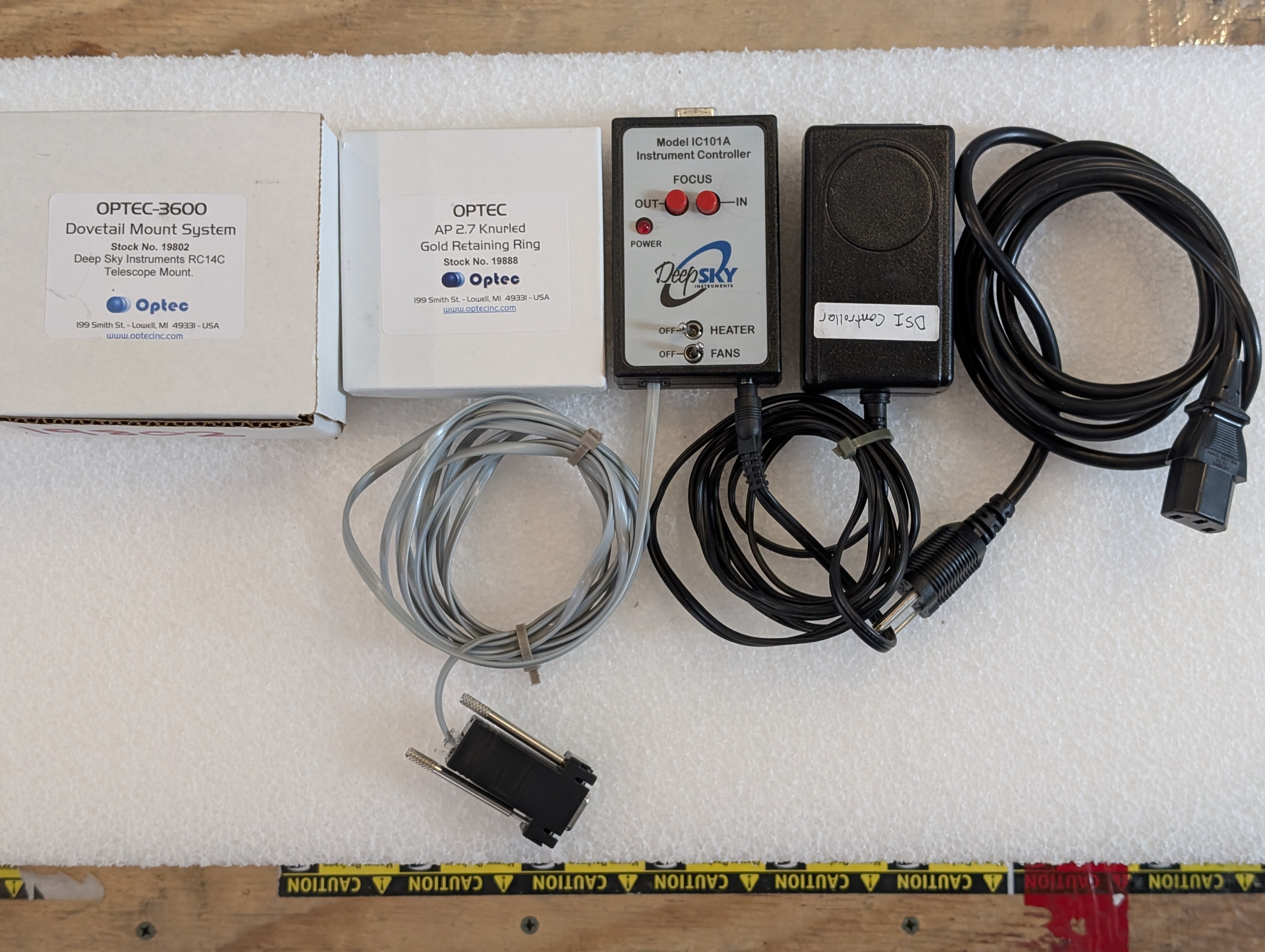

Telescope Control Box, Power Supply and cables for the Secondary motorized focuser and mirror heating/fan control

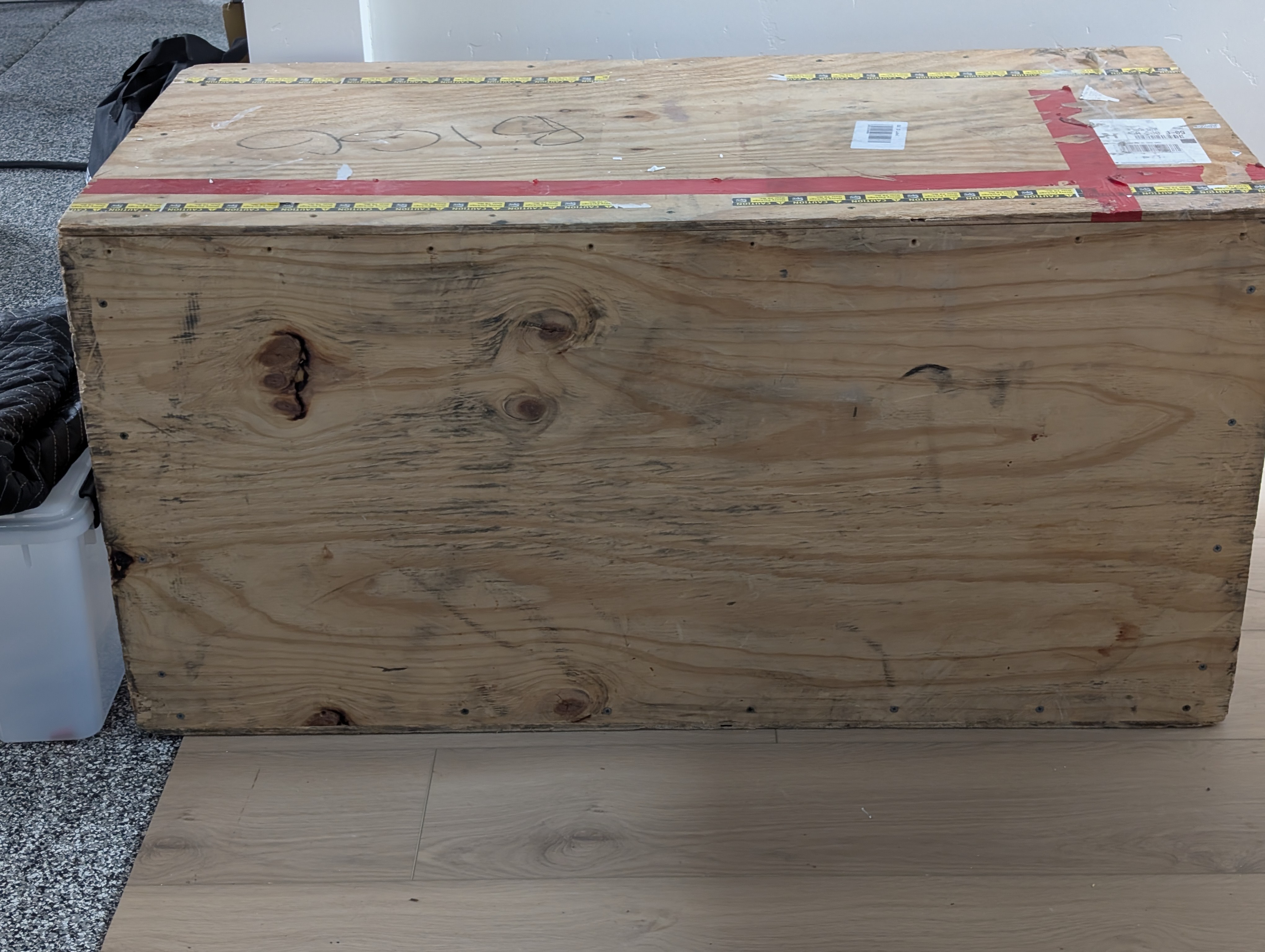

Shipping Crate: Approximate Weight 125 lbs.

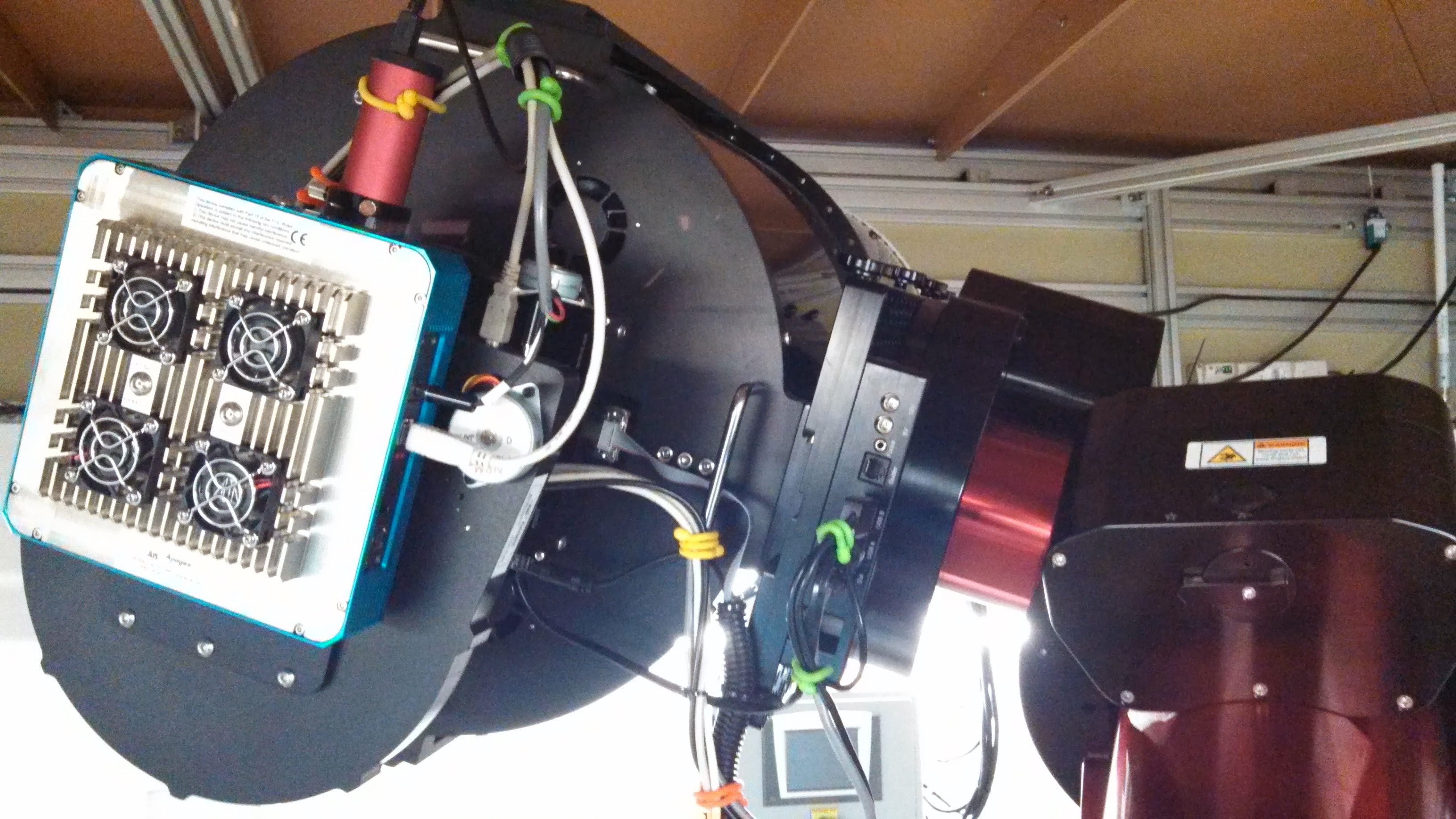

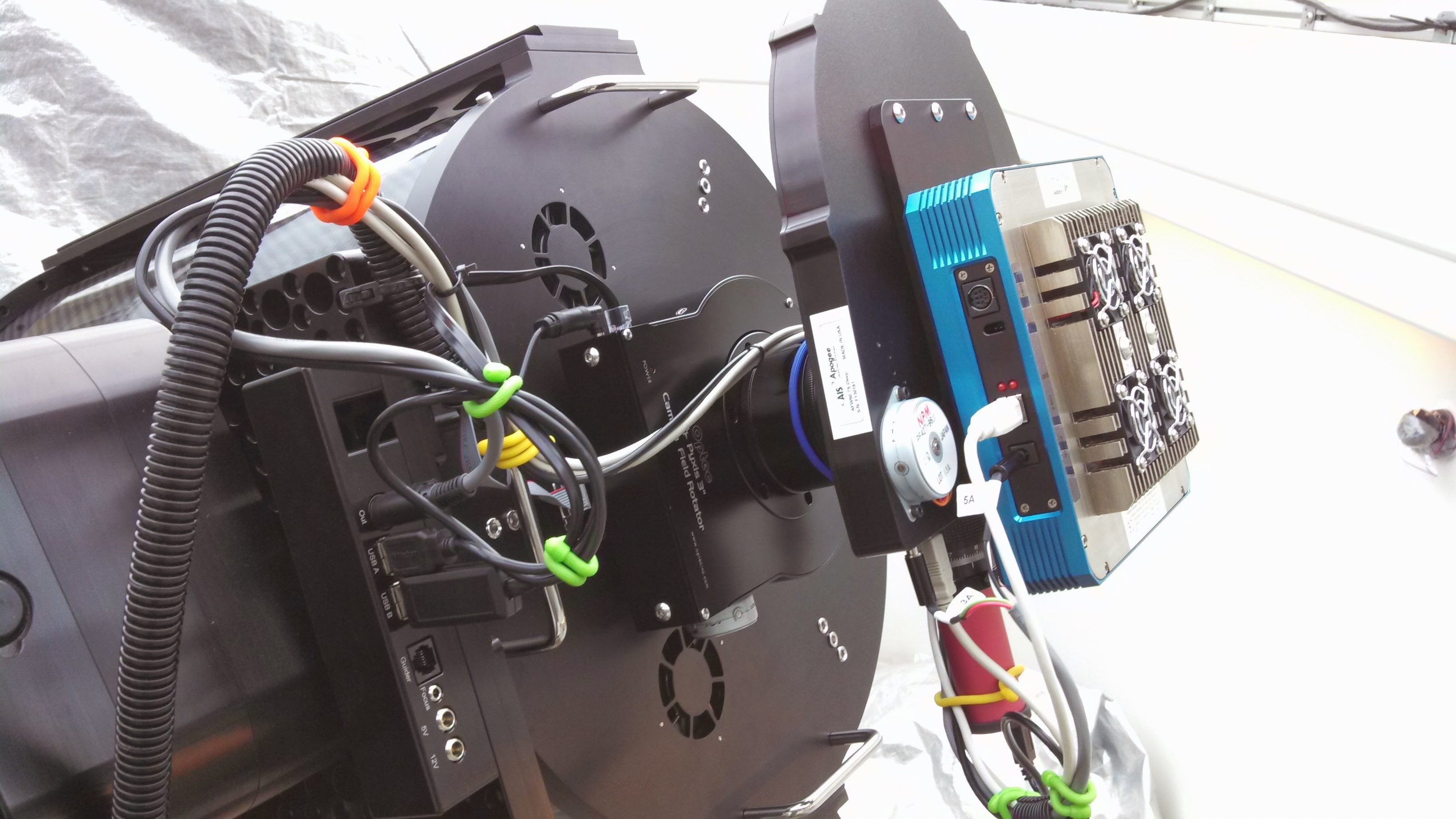

Shown in pictures but not Included:
Apogee F16M 36mm square, 16MP CCD
Apogee 7 Position filterwheel
MMOAG
Guider Camera

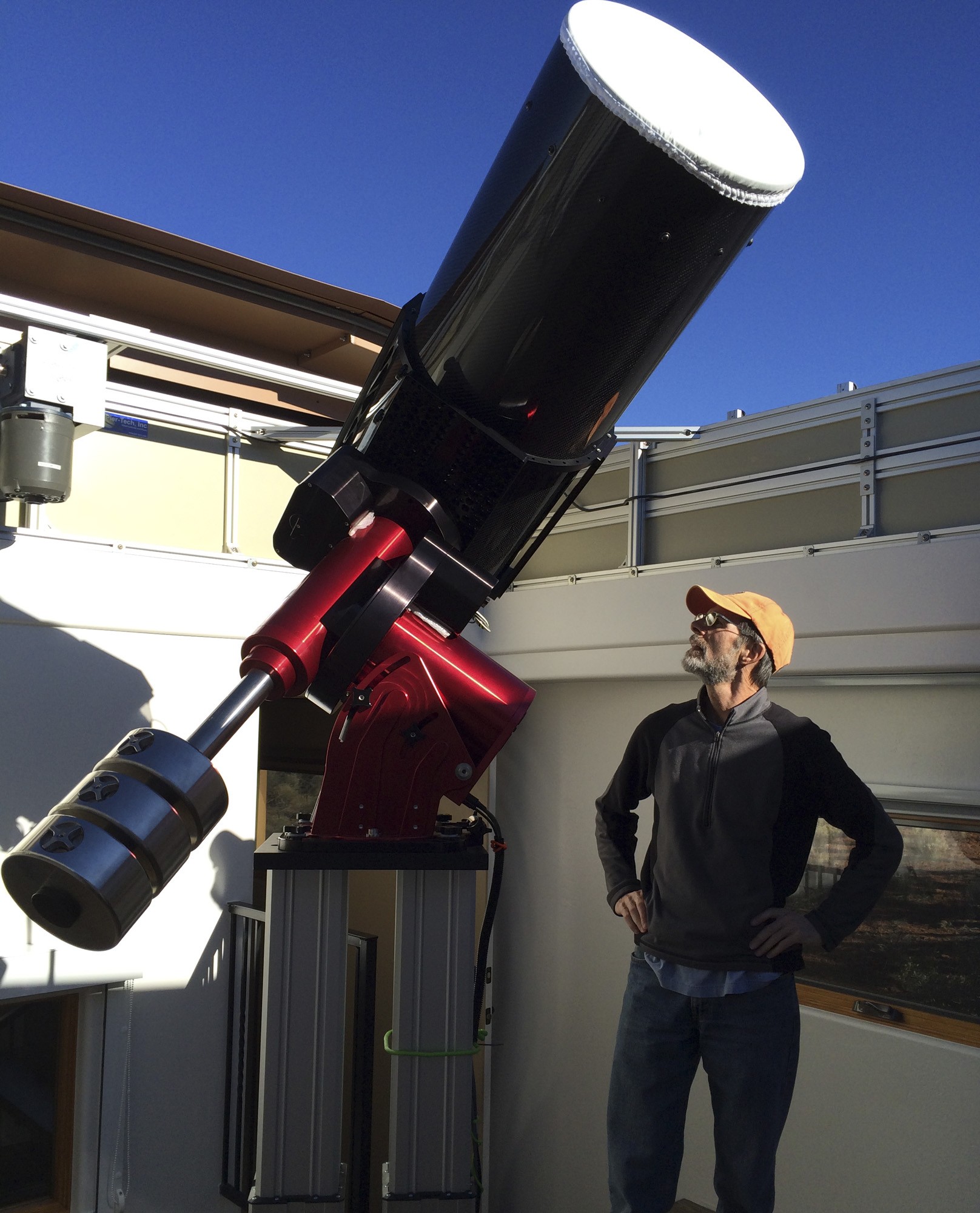

Paramount MEII
