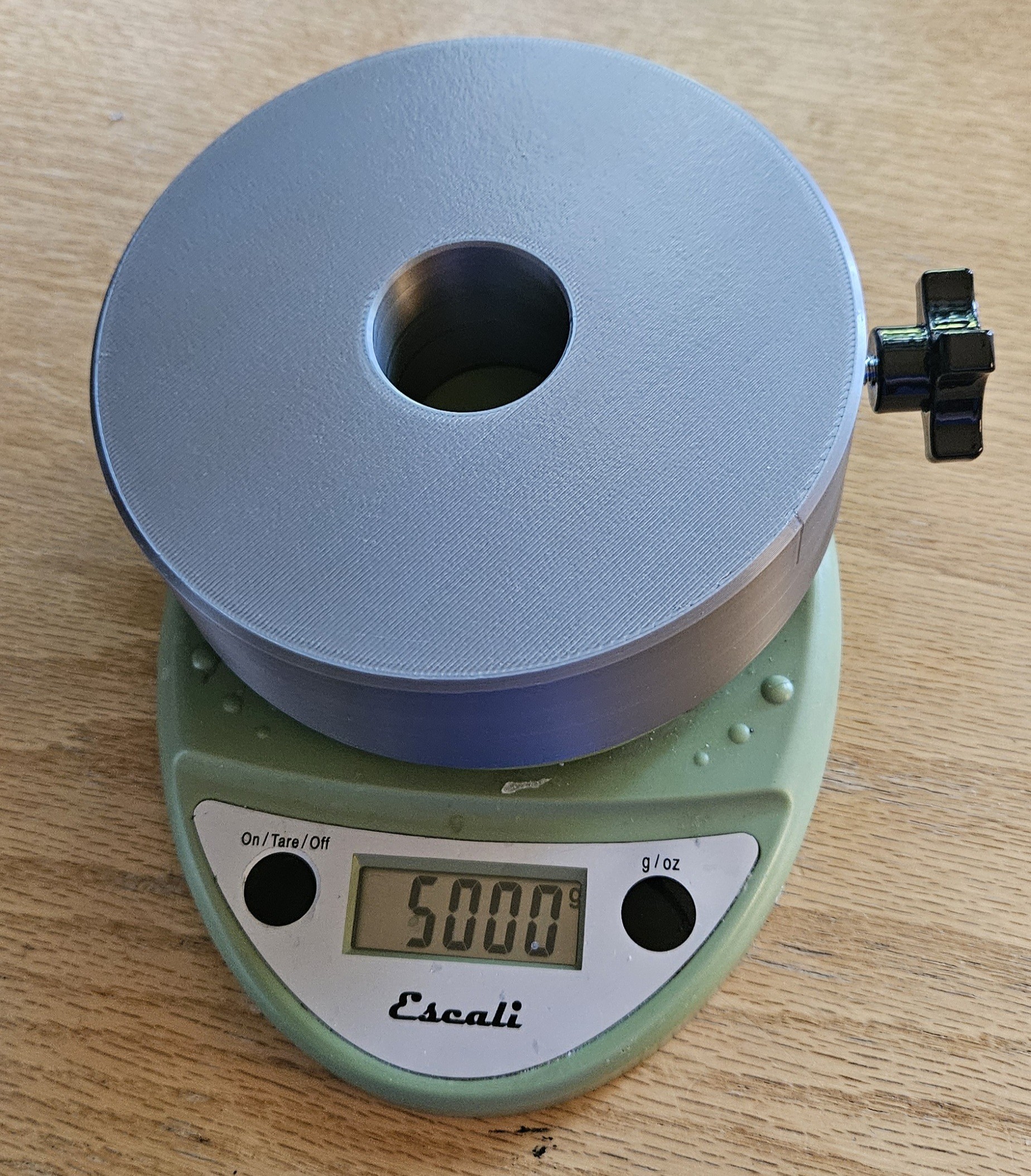

1.5" Bore Counterweight 5kg (11lb)
Please Log In to view the details for this classified ad.
Don't have an Astromart account? Click here to create one

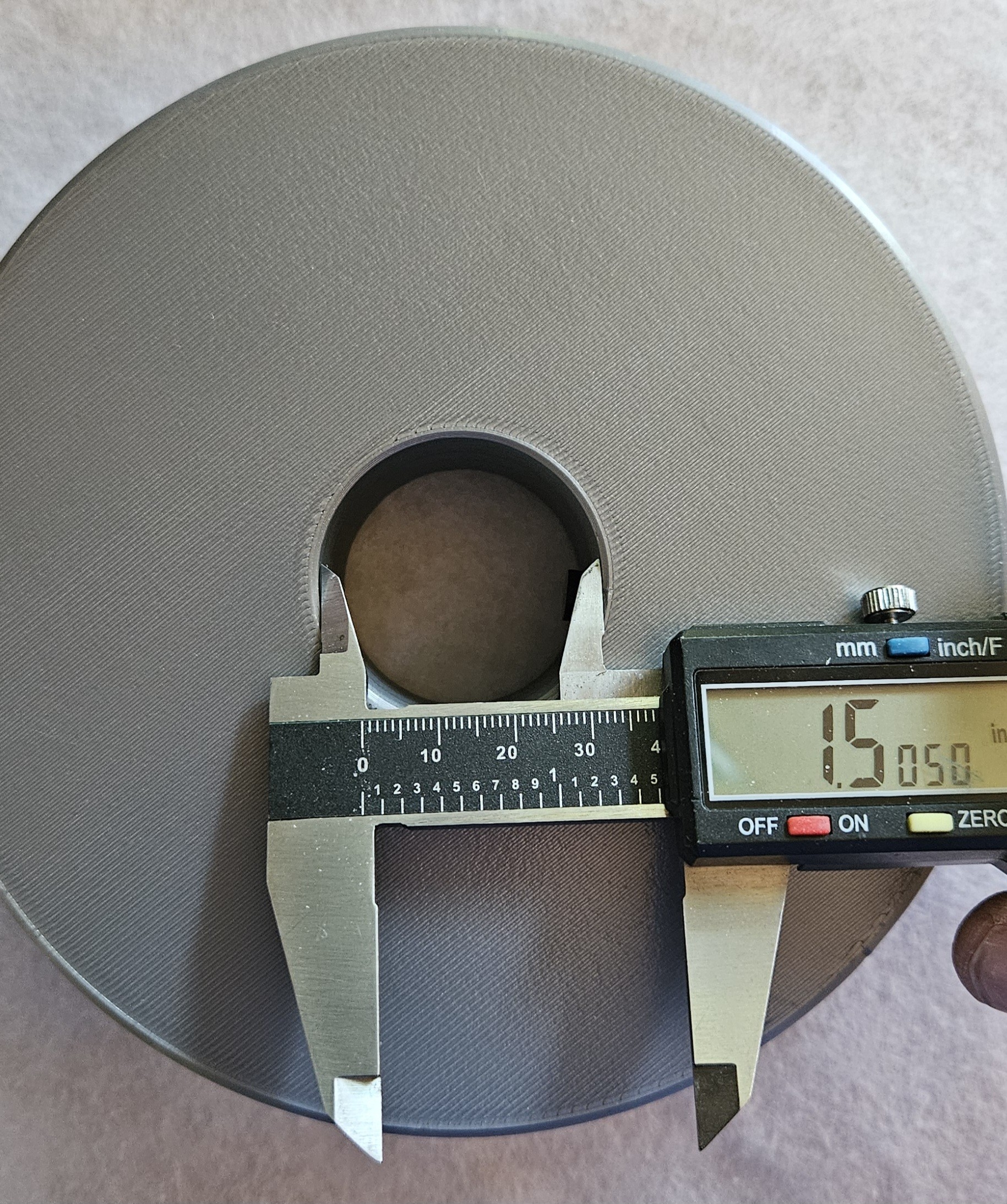

Custom counterweight for mounts with 1.5" Counterweight Shafts. Astro-Pysics, Paramount, iOptron, Cave, etc.

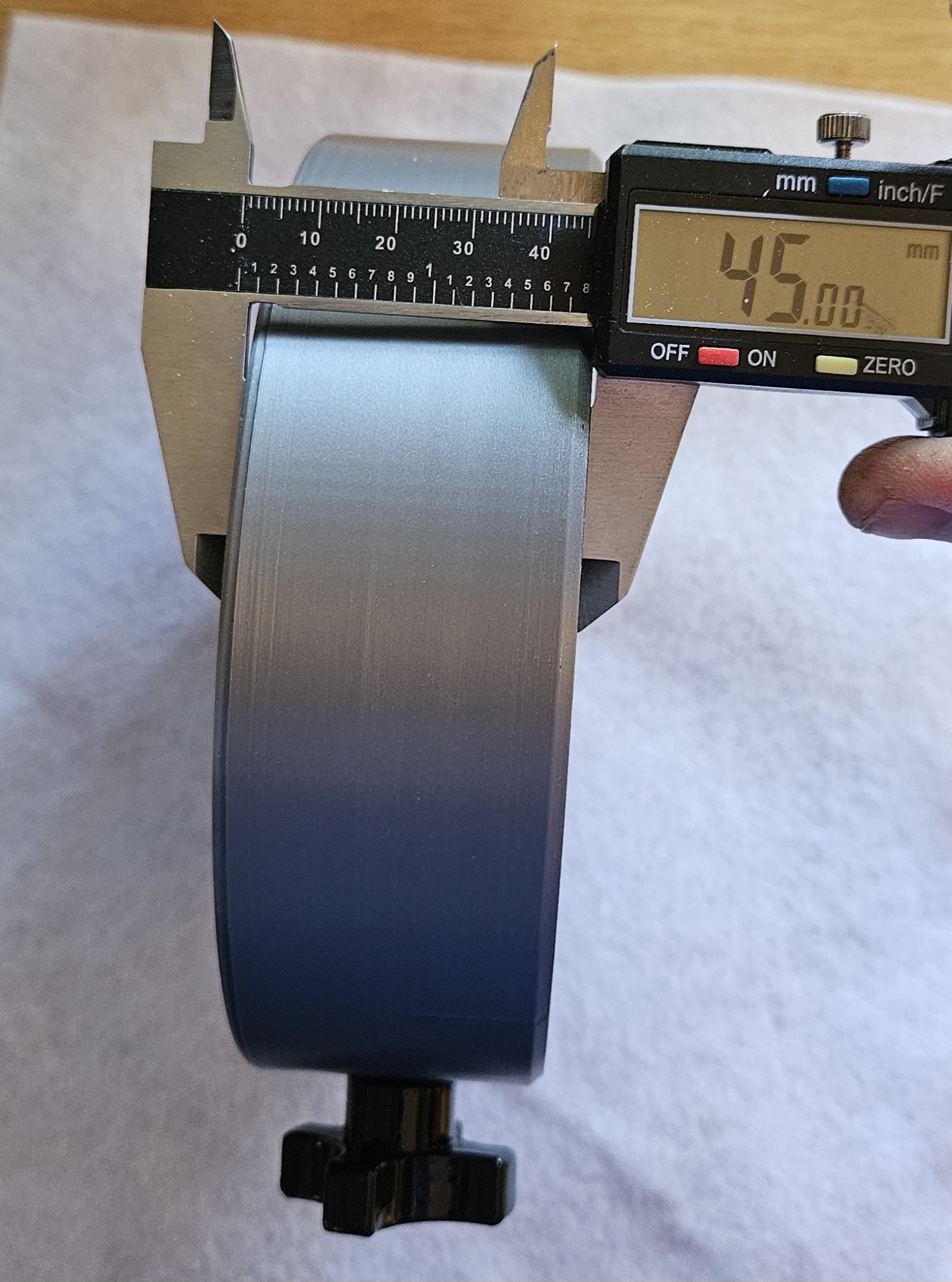

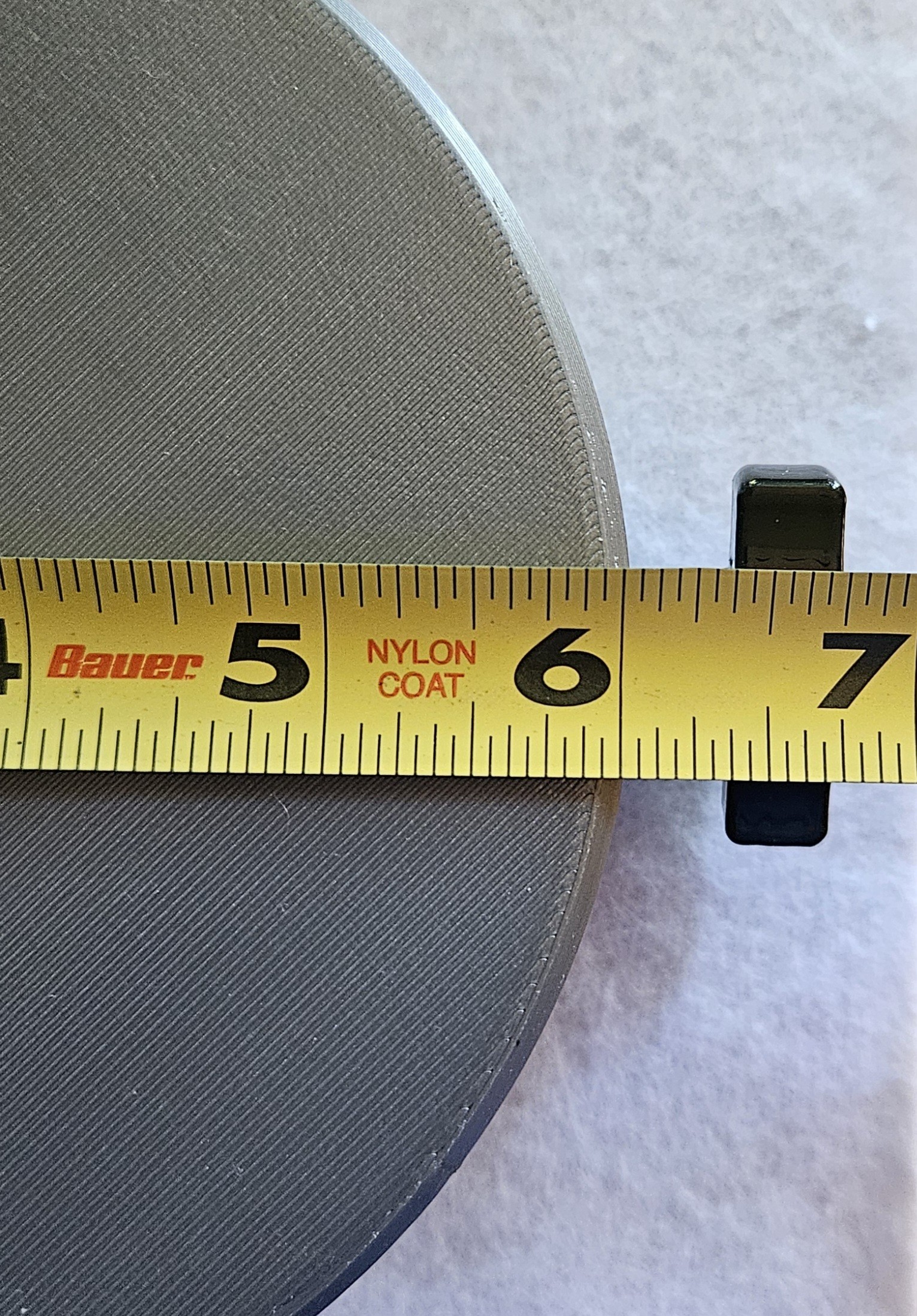

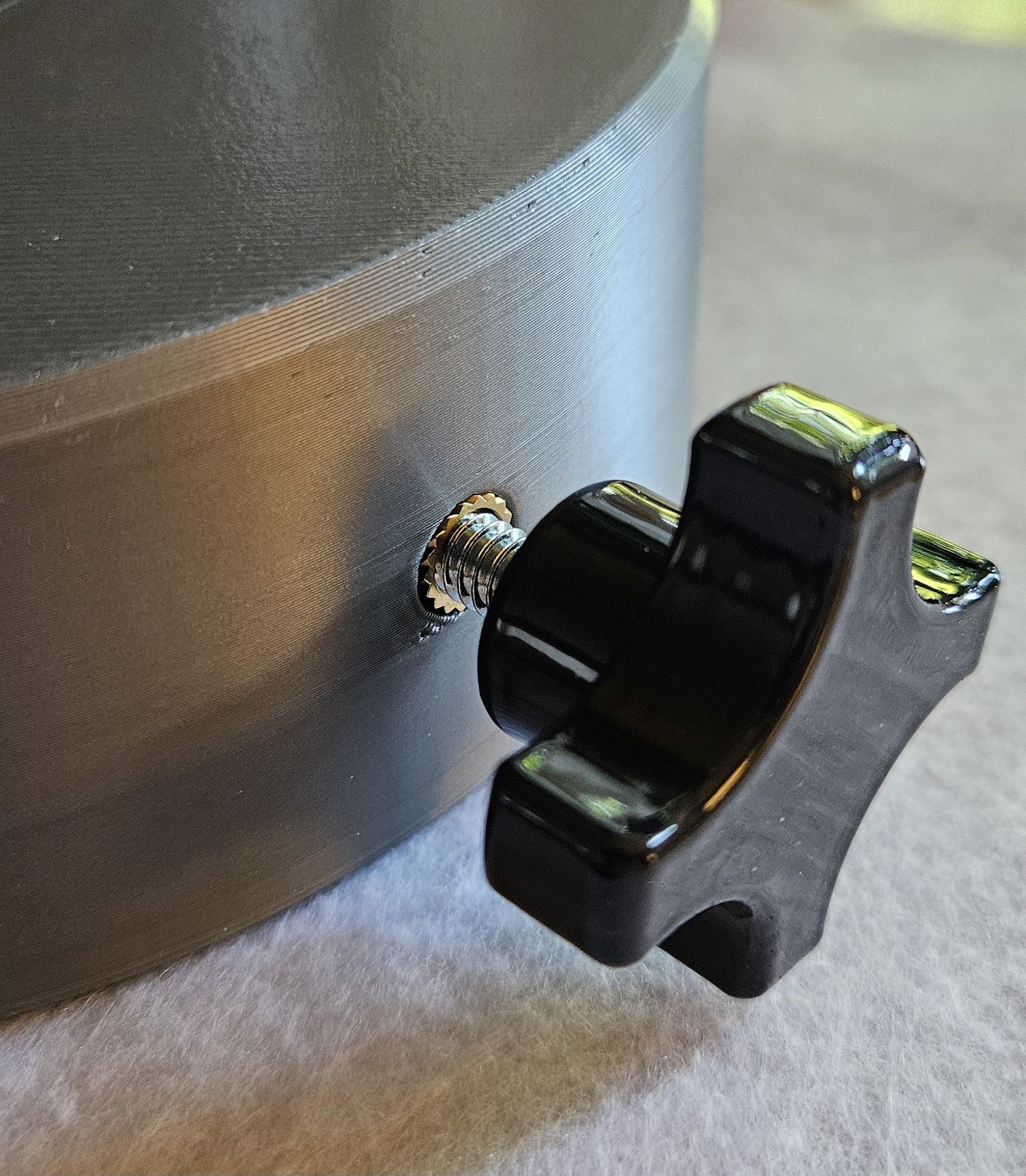

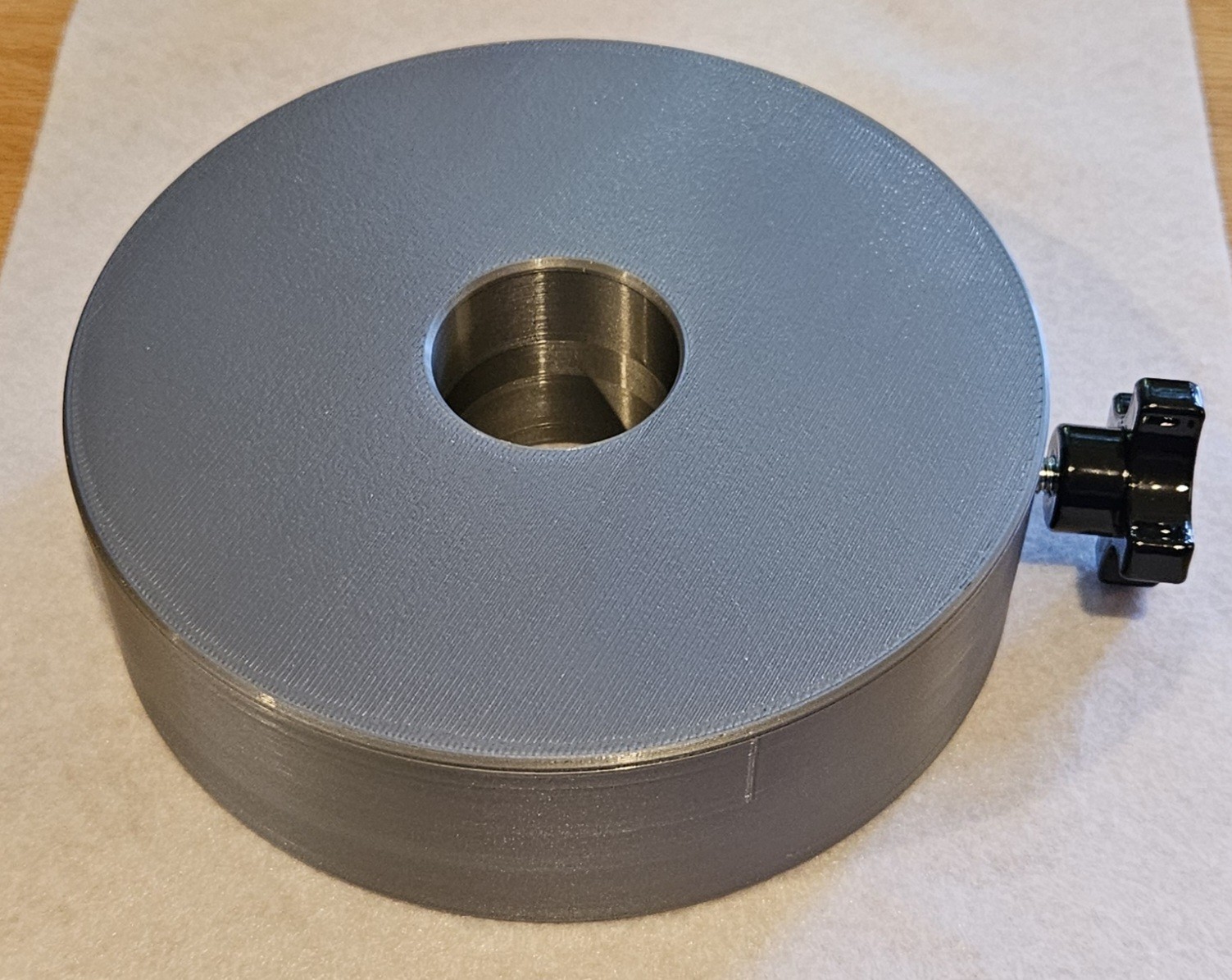

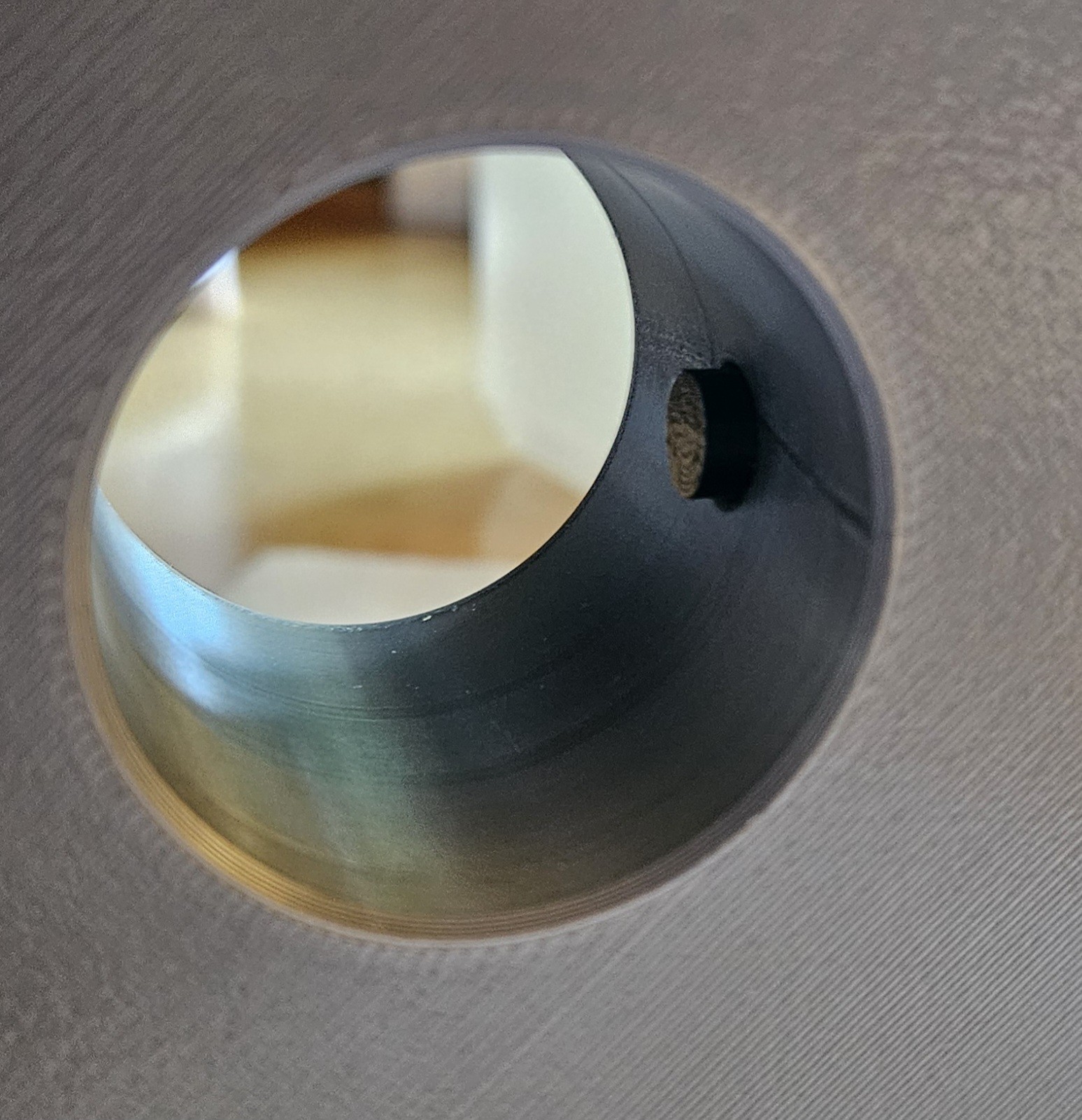

Dimensions: 6" OD, 45mm tall (1.77") Item is first 3D printed with a hollow PETG shell with threaded lid, it is filled with lead weights, then a 2 part epoxy is poured in to fill in all the gaps and encapsulate everything. It is left to cure for a few days then it is a single solid part; the 3D printed shell doesn't have to support the weight as it is all fused as one. A 3D printed solid push pin is installed to hold the weight to the shaft without marring it. And a metal 1/4-20 bolt with knob pushes the pin. Brass threaded inserts are used to retain the knob, No risk of rusting or paint flaking off. 1 year warranty for any issues.
Ships in a USPS Priority Large Flat Rate box with high density packing foam for shipping protection.
Custom colors available upon request! (Glow in the dark PETG is also an option!)
Dimensions: 6" OD, 45mm tall (1.77") Item is first 3D printed with a hollow PETG shell with threaded lid, it is filled with lead weights, then a 2 part epoxy is poured in to fill in all the gaps and encapsulate everything. It is left to cure for a few days then it is a single solid part; the 3D printed shell doesn't have to support the weight as it is all fused as one. A 3D printed solid push pin is installed to hold the weight to the shaft without marring it. And a metal 1/4-20 bolt with knob pushes the pin. Brass threaded inserts are used to retain the knob, No risk of rusting or paint flaking off. 1 year warranty for any issues.
Ships in a USPS Priority Large Flat Rate box with high density packing foam for shipping protection.
Custom colors available upon request! (Glow in the dark PETG is also an option!)
