This ad is for:
2 each DSBS-DUAL13-SAD- D Series DUAL13 Saddle

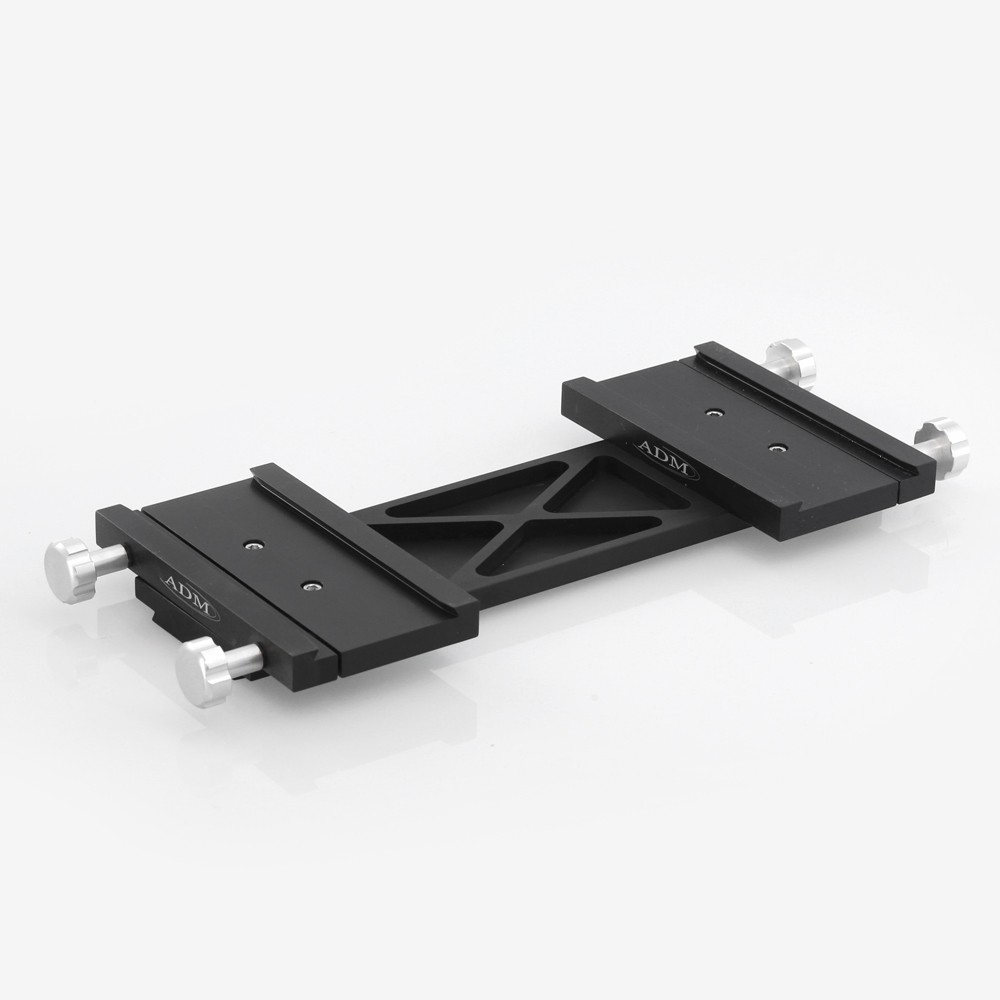

Fits D Series Saddles. Side-By-Side dovetail plate. Incorporates two saddle plates mounted parallel to each other. Used for mounting two optical systems side by side, by rotating the saddle 90 degrees. Accepts D series dovetail plates. Total thickness 1.5″, Saddle plate separation 11.0″ center to center, Wt. 6.5 lbs
1 each DSBS-DUAL13-SAD- D Series DUAL13 Saddle Upgrade for Side-By-Side

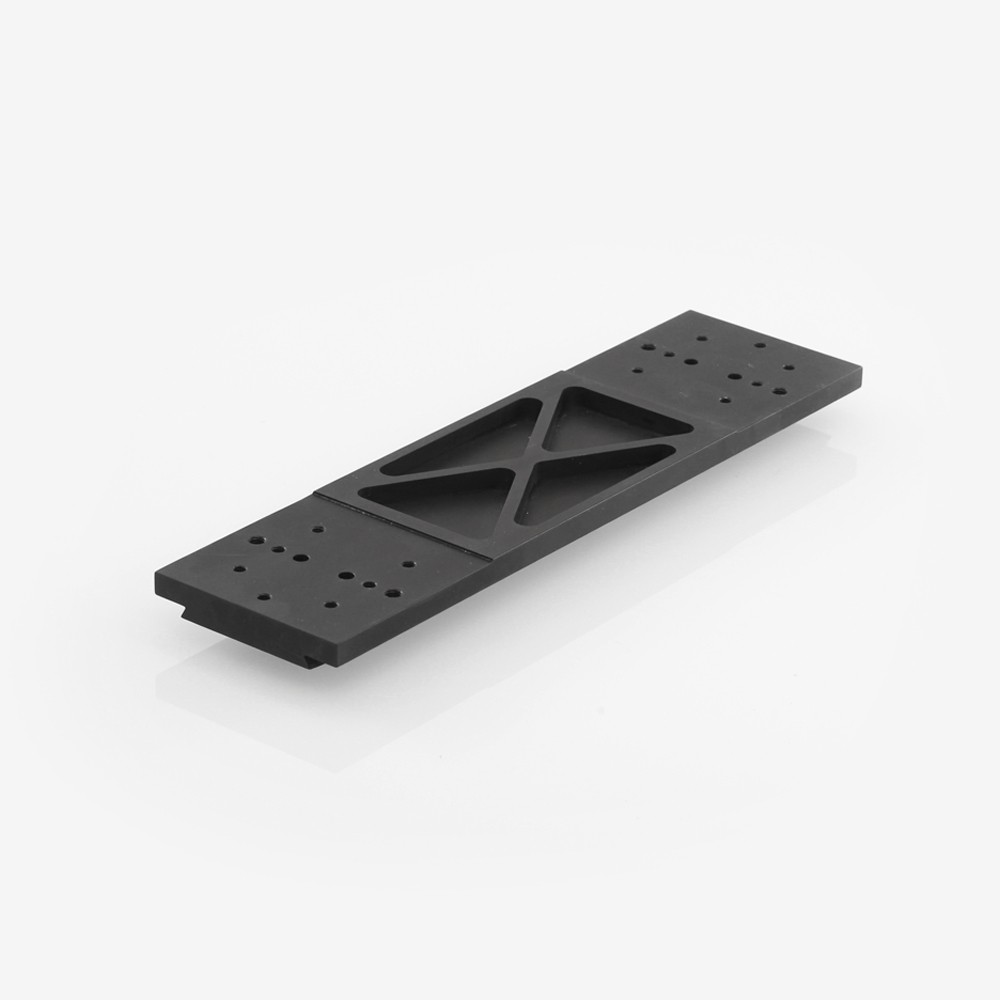

Fits D Series saddles. Connecting bar for Side-By-Side systems. Has four different hole mounting configurations on each end. Tapped 2″ center to center for 1/4×20 tpi, Tapped 3″ center to center for 5/16×18 tpi, Counterbored 1″ center to center for 1/4 SHCS, Tapped 2″ square for 1/4×20 tpi (TGAD Aiming Device). 15″ Long, 4″ Wide, .75″ Thick, Wt. 49 oz.

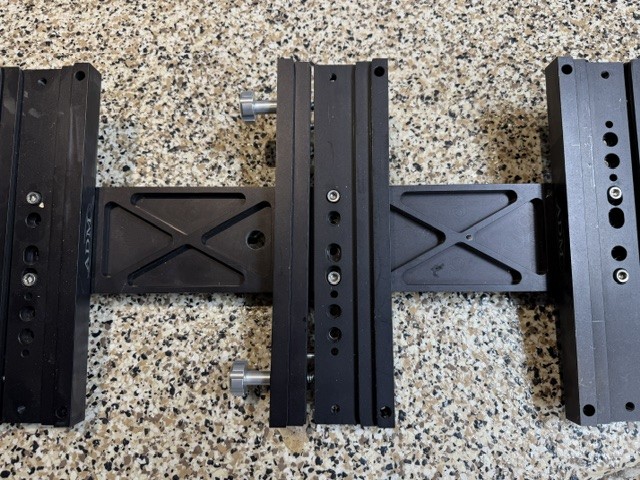

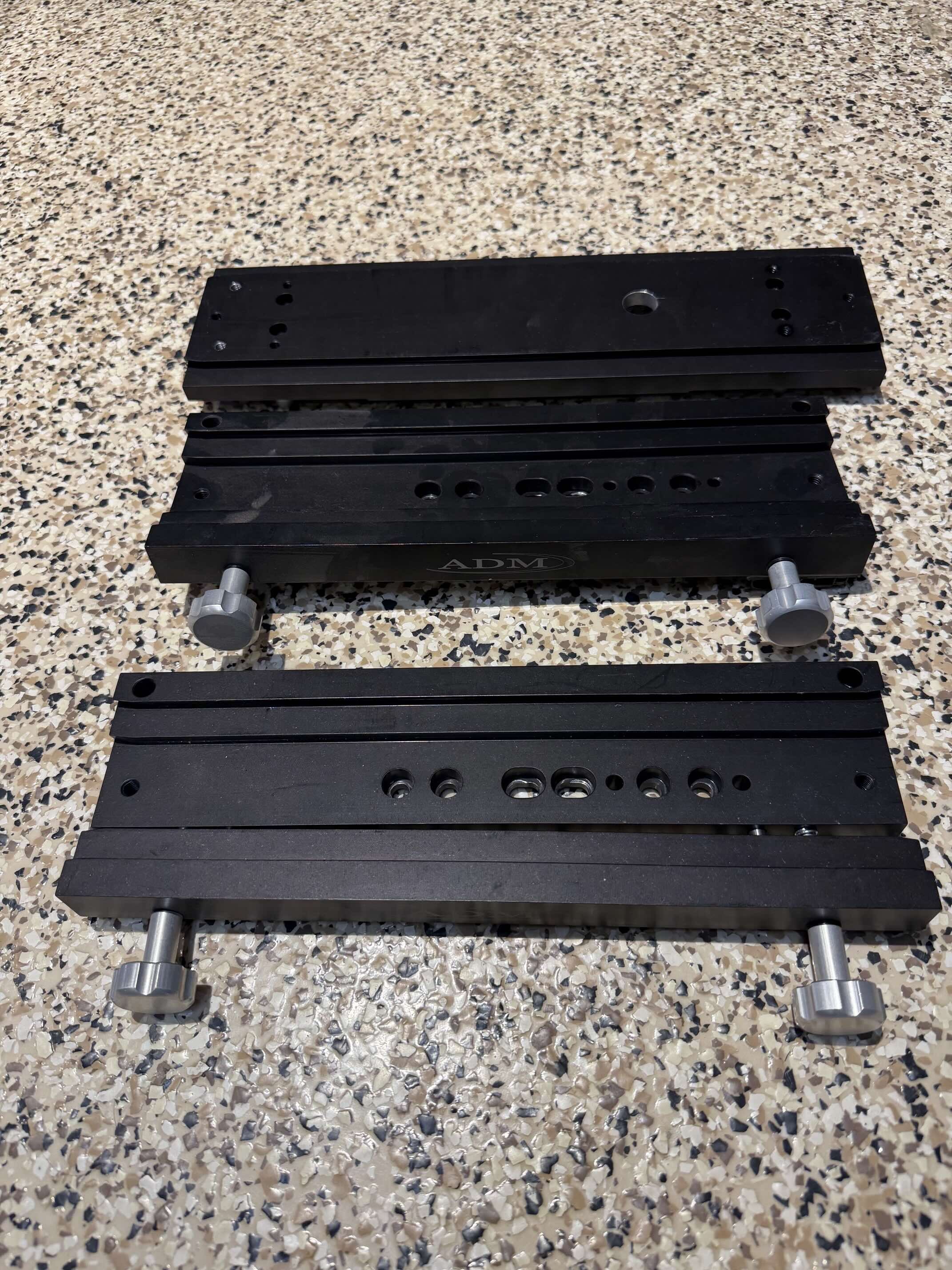

I used this on an L550 mount at HCRO to hold 3 scopes each about 45 lbs. I machined a hole into the Connecting to pass bar a USB and power cable through. What you see in this ad is the 2 scope setup. If you are interested I have a 24" Losmandy plate and a machined connecting bar that you can bolt together and mount 3 scopes each 11" on center. If you want 3 place side by side for $100 I'll include the 24" Losmandy plate, special machined connector bar and third saddle as shown n the first photo.
2 each DSBS-DUAL13-SAD- D Series DUAL13 Saddle
Fits D Series Saddles. Side-By-Side dovetail plate. Incorporates two saddle plates mounted parallel to each other. Used for mounting two optical systems side by side, by rotating the saddle 90 degrees. Accepts D series dovetail plates. Total thickness 1.5″, Saddle plate separation 11.0″ center to center, Wt. 6.5 lbs
1 each DSBS-DUAL13-SAD- D Series DUAL13 Saddle Upgrade for Side-By-Side
Fits D Series saddles. Connecting bar for Side-By-Side systems. Has four different hole mounting configurations on each end. Tapped 2″ center to center for 1/4×20 tpi, Tapped 3″ center to center for 5/16×18 tpi, Counterbored 1″ center to center for 1/4 SHCS, Tapped 2″ square for 1/4×20 tpi (TGAD Aiming Device). 15″ Long, 4″ Wide, .75″ Thick, Wt. 49 oz.
I used this on an L550 mount at HCRO to hold 3 scopes each about 45 lbs. I machined a hole into the Connecting to pass bar a USB and power cable through. What you see in this ad is the 2 scope setup. If you are interested I have a 24" Losmandy plate and a machined connecting bar that you can bolt together and mount 3 scopes each 11" on center. If you want 3 place side by side for $100 I'll include the 24" Losmandy plate, special machined connector bar and third saddle as shown n the first photo.
