SBIG STT8300M CCD camera and Filterwheel
Please Log In to view the details for this classified ad.
Don't have an Astromart account? Click here to create one
US domestic shipping only.

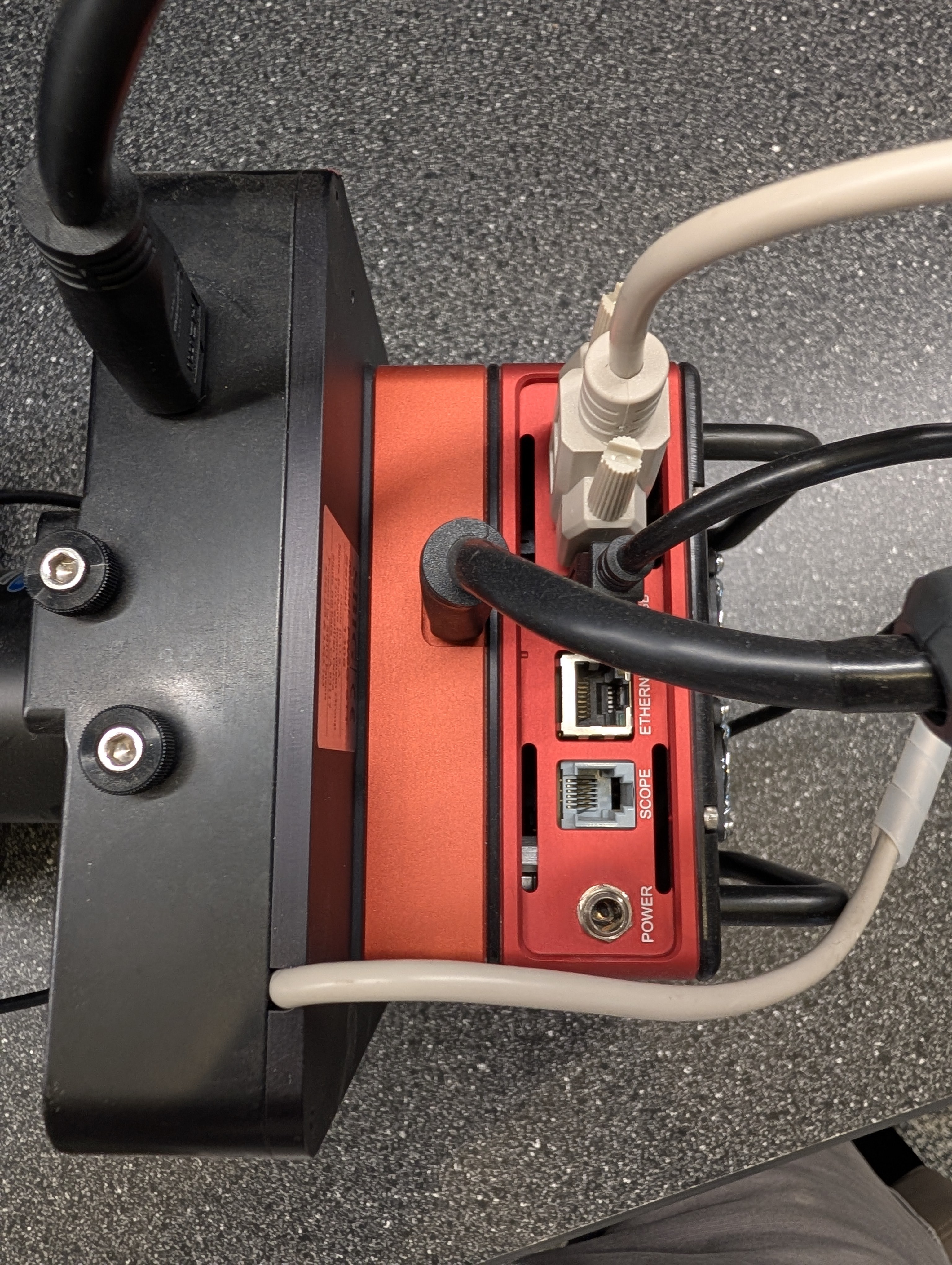

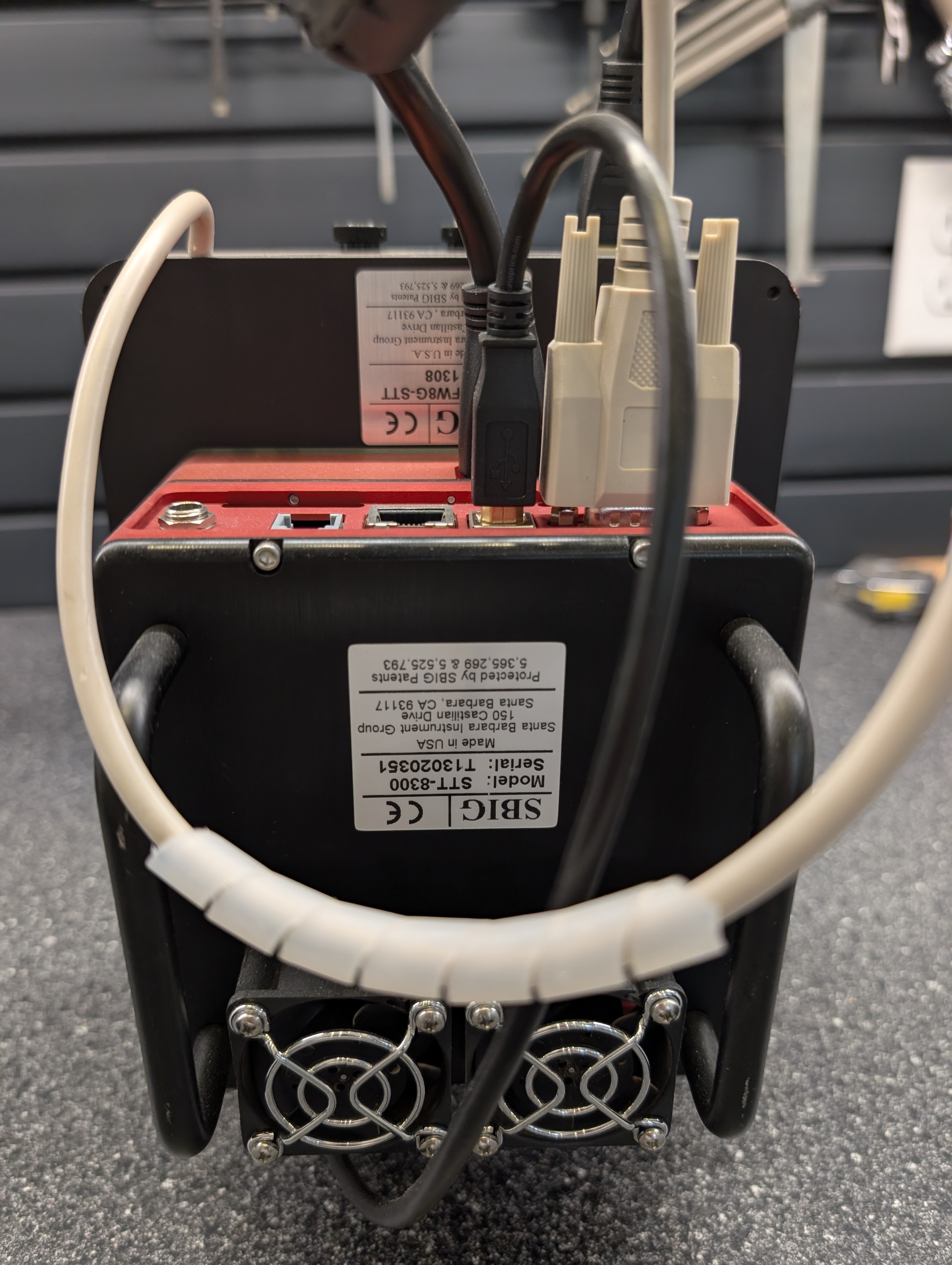

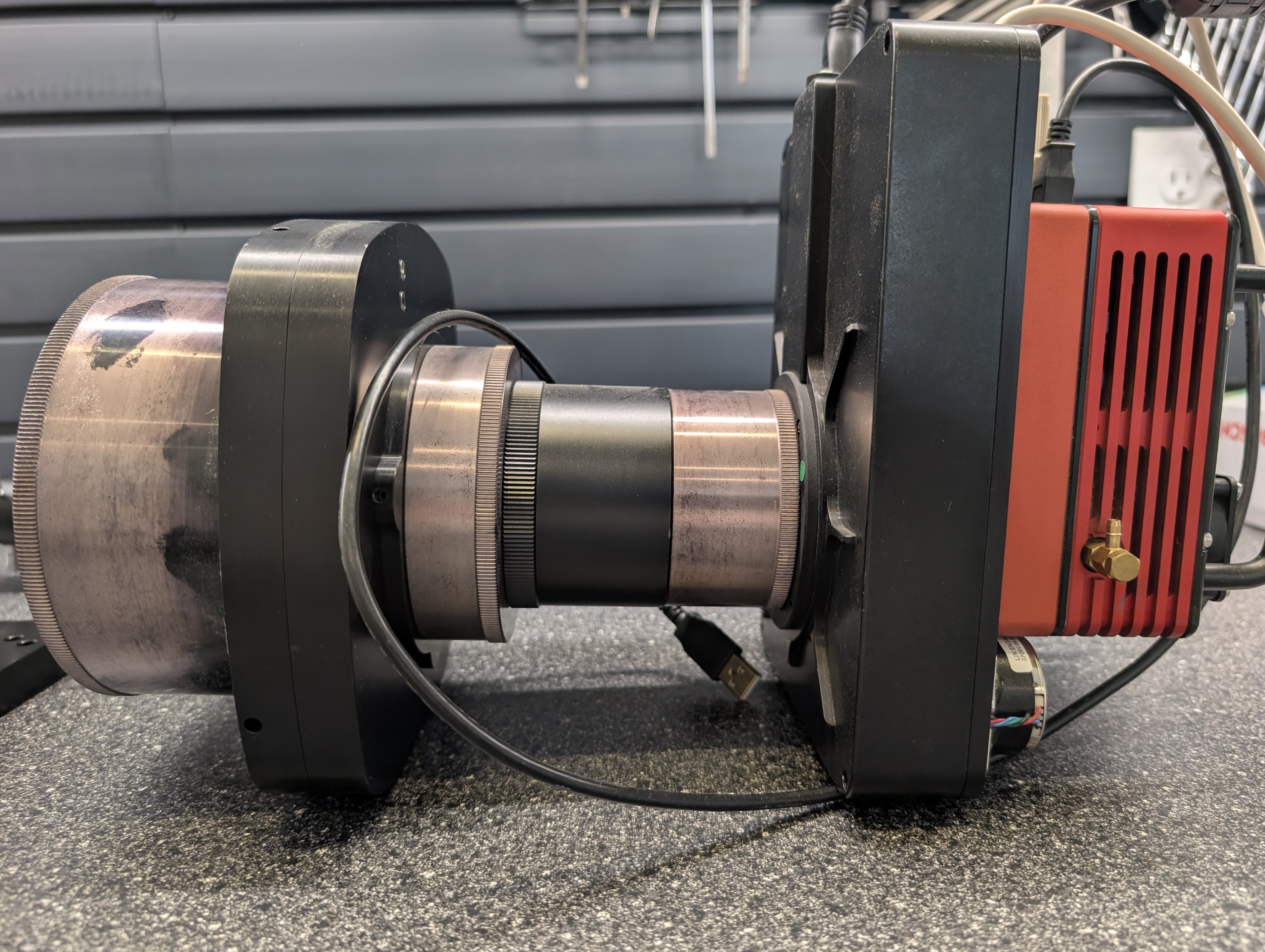

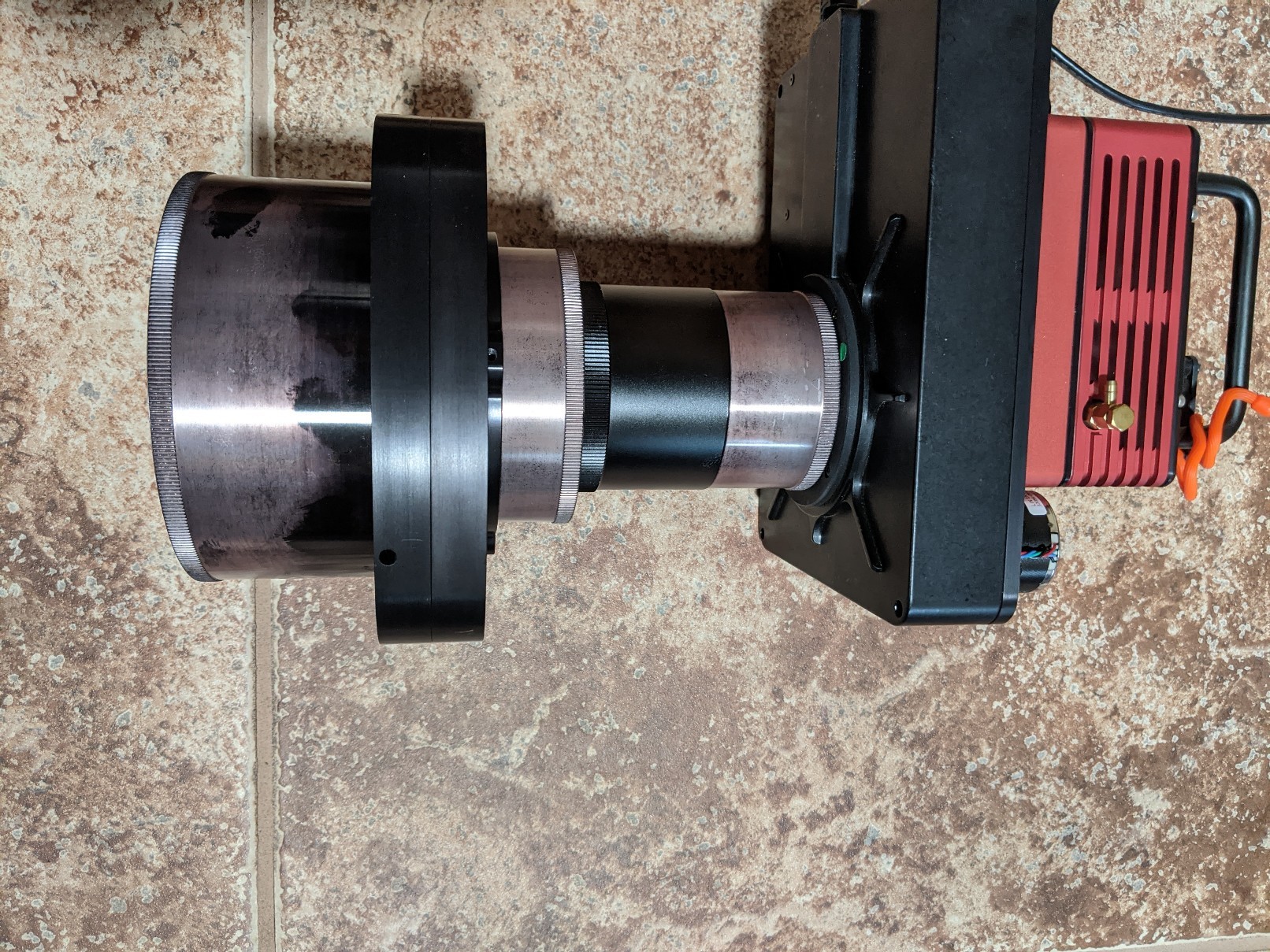

Used SBIG STT8300 Monochrome CCD camera and Self Guiding Filterwheel with 36mm round filterset
Specs:
FW8G Self-Guiding Filterwheel in Front of filters
• Lowest Noise 10Mhz Readout <1 sec
• High Precision 8-position Filter Wheel
• User Selectable Internal Image Processing
• Built-in Frost Detection
• 2-Stage TE Cooling -55C delta T with air
• Built-in Web Server
• Full Frame Image Buffer
• Even-illumination (photometric) shutter
• Ethernet and USB 2.0
• Built-in RBI Pre-flash
• Liquid Cooling Capability Standard
• Twin Variable Speed Fans
• Multi-coated Sapphire Chamber Window
• Accepts 1.25”, 31mm and 36mm filters
• High Accuracy Temperature Control
• External Triggers In / Out
• Status, Power and Relay Indicators
• Windows 32-bit and 64-bit (and Mac) Software
• Optional Remote Guide Head
• Optional Adaptive Optics (AO-8)
• Power Management System
• 12VDC Operation
Kodak KAF-8300
STF-8300 Typical Specifications
CCD Kodak KAF-8300
Pixel Array 3326 x 2504 pixels
CCD Size 17.96 x 13.52 mm
Total Pixels 8.3 million
Full Well Capacity ~25,500eDark Current 0.002e- / pixel / sec at -10°C
Antiblooming 1000X
Shutter Even-Illumination, Mechanical
Exposure 0.09 to 3600 seconds
A/D Converter 16 bits
Gain 0.37e- / ADU
Read Noise ~9.3eBinning Modes 1 x 1, 2 x 2, 3 x 3, etc. – 15 x 15
Digitization Rates 10 Megapixels / Second
Full Frame Download Less than 1 second
Cooling -40°C max. from ambient
Temp. Regulation +/- 0.1 degree
Power 12VDC, 3 amps max
USB 2.0 and Ethernet
• Windows 32 / 64 bit
• Mac OSX
• 3rd party Linux
4.9 x 4.9 x 2.9 in. / 124 x 124 x 74 mm
T-Thread, 2” nosepiece
2.7 pounds / 1.2 kg
Custom Case

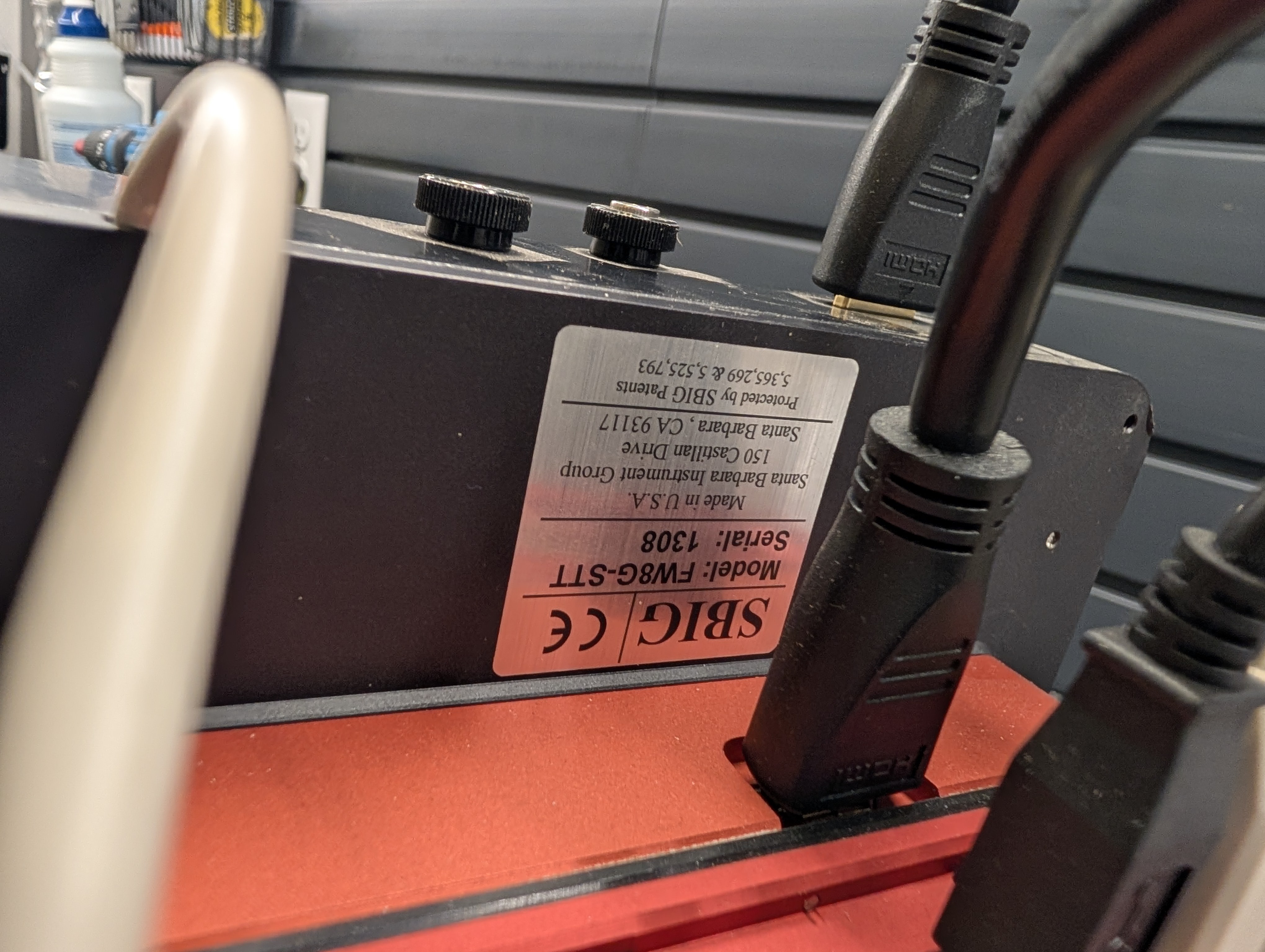

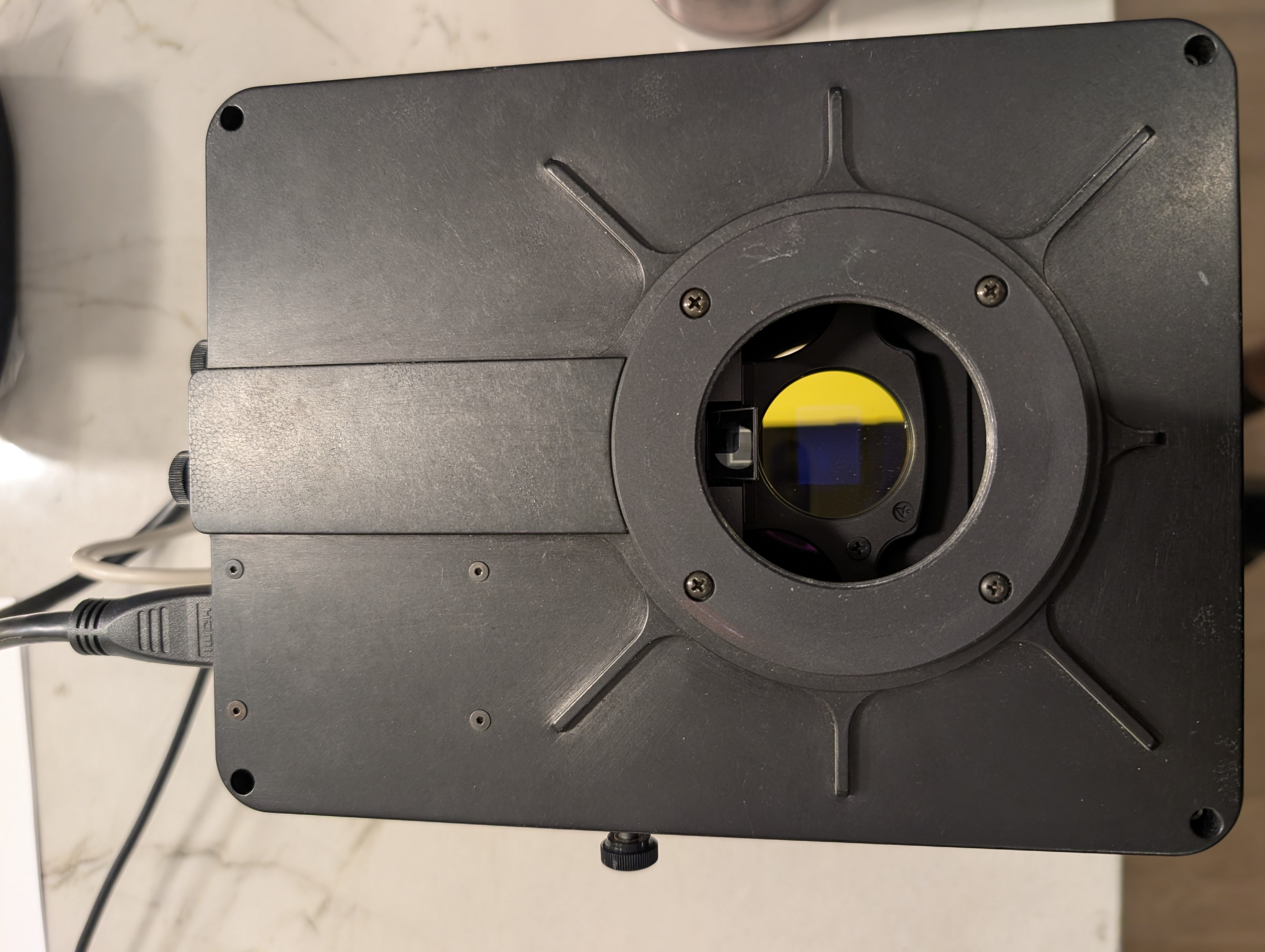

Self-Guiding Filter Wheel
The FW8G-STT is an 8-position filter wheel made specifically
for the STT series cameras that includes a CCD camera built-in
to the front cover of the filter wheel housing for self-guiding
from in front of the filters. The filter carousel holds 36mm round
unmounted filters for unvignetted imaging with the larger sensor
of the STT-8300.

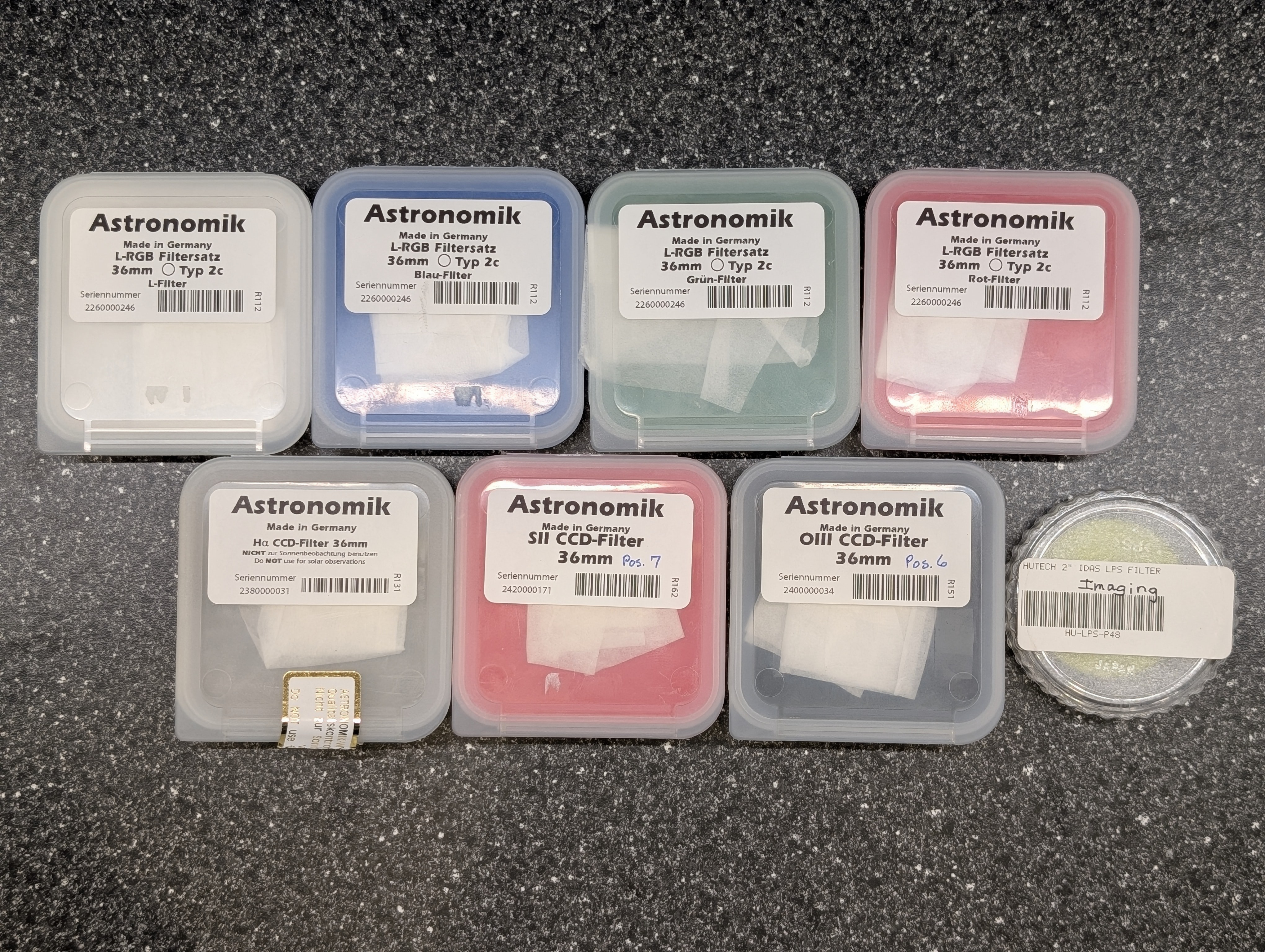

Filter set:
Astronomic LRGB and Ha, SII and OIII
