SBIG STF 8300 WITH 8 POSITION FILTER WHEEL WITH FILTERS
Please Log In to view the details for this classified ad.
Don't have an Astromart account? Click here to create one

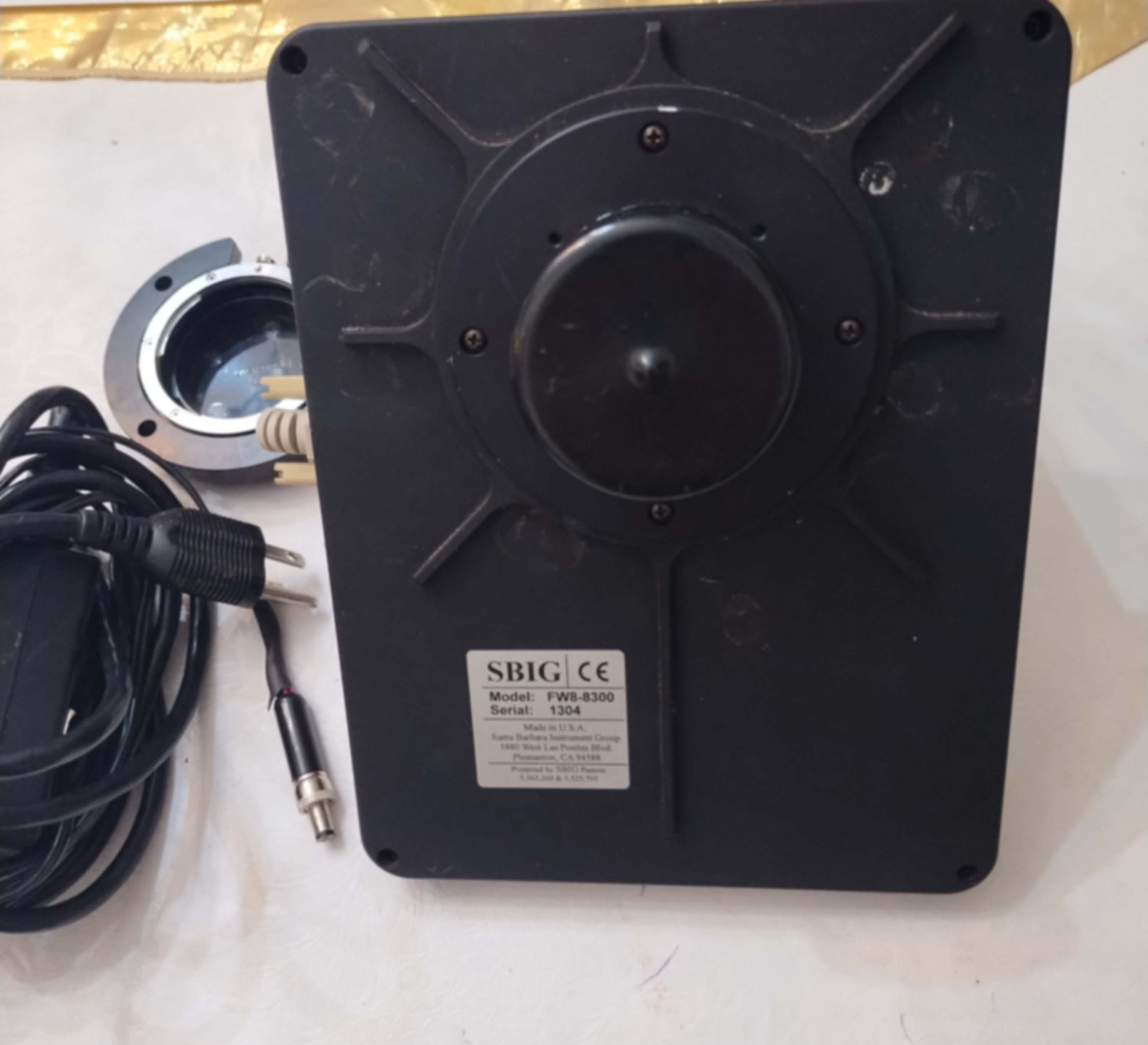

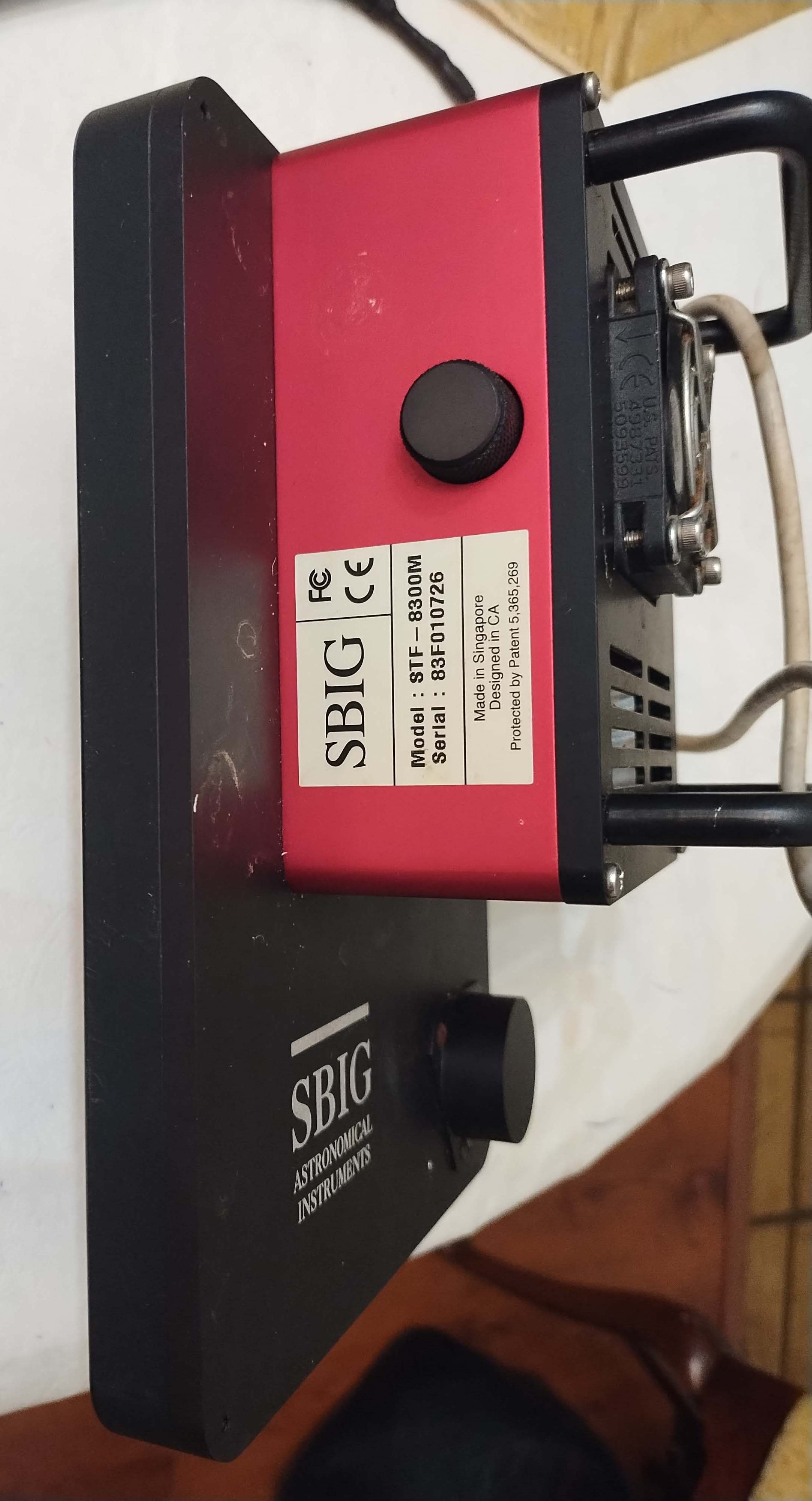

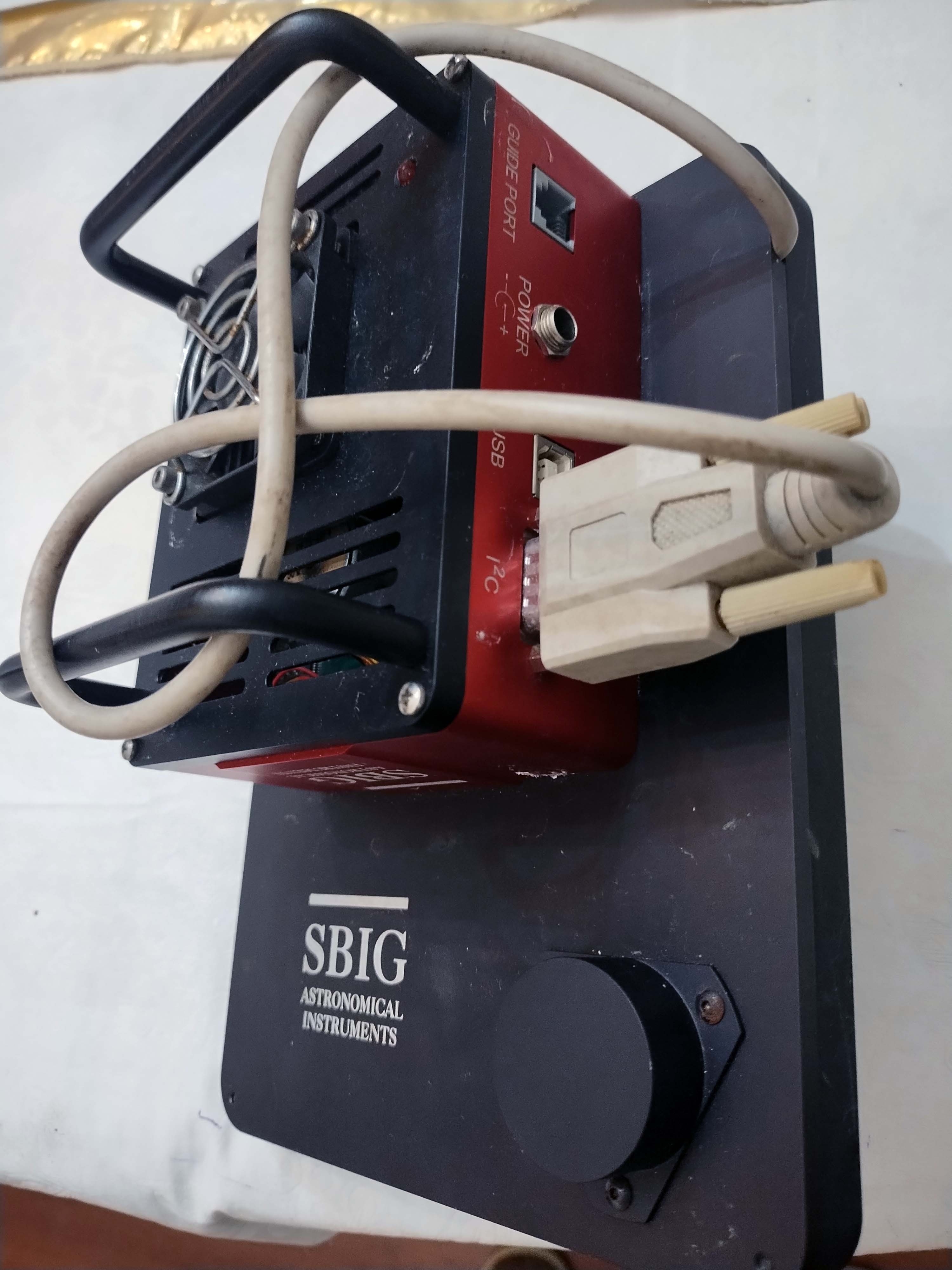

For Sale is my SBIG STF 8300 camera with built in 8 position filter wheel with filters and power supply. It comes with LRGB and narrow band HA, OIII and SII 36 mm filters that are all clean and in great shape. This is a work horse camera with light usuage and it works well. You can check the specs below from Defraction Limited, who now services SBIG cameras. Its an excellent starter camera for those interesting learning both RGB imaging and narrow band imaging. I also comes with an adapter for Canon camera lens if you want to use it with them. Also a good backup camera.
SALE IS TO CONUS ONLY
The STF-8300 uses the popular KAF-8300 CCD.
10-megapixel/second digitization rate and a full frame image buffer.
A full frame image will download in less than one second. The camera uses
SBIG's traditional even illumination (photometric) shutter design and adds a user
rechargeable desiccant plug similar to the proven ST, STL, and STX designs.

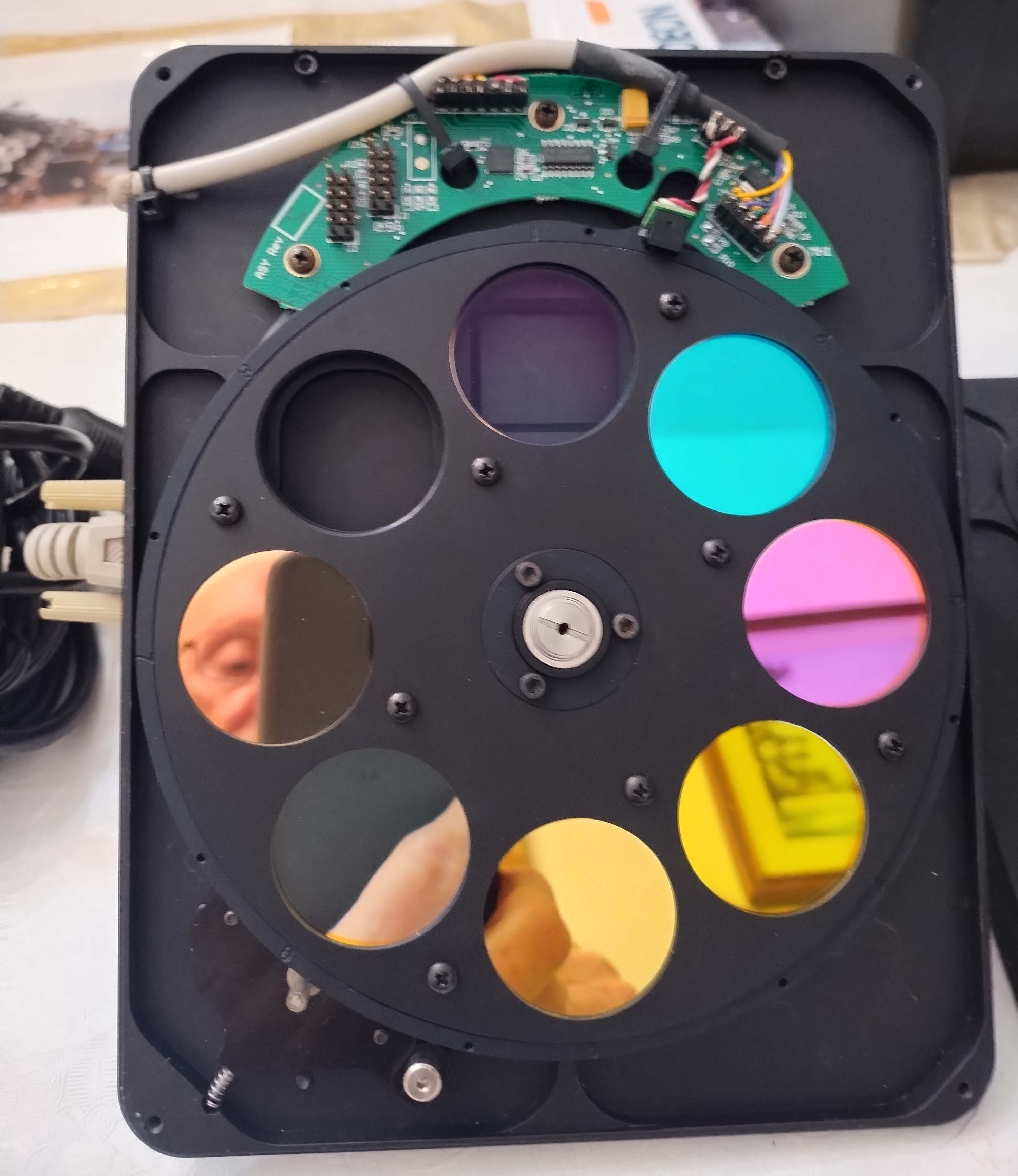

Integrated and 8-position filter wheels.
TF-8300 Specifications
CCD Kodak KAF-8300
Pixel Array 3326 x 2504 pixels
CCD Size 17.96 x 13.52 mm
Total Pixels 8.3 million
Full Well Capacity ~25,500e-
Dark Current 0.002e- / pixel / sec at -10°C
Antiblooming 1000X
Shutter Even-Illumination, Mechanical
Exposure 0.09 to 3600 seconds
A/D Converter 16 bits
Gain 0.37e- / ADU
Read Noise ~9.3e-
Binning Modes 1 x 1, 2 x 2, 3 x 3, etc. – 15 x 15
Digitization Rates 10 Megapixels / Second
Full Frame
Download
Less than 1 second
Cooling -40°C max. from ambient
Temp. Regulation +/- 0.1 degree
Power 12VDC, 3 amps max
Interface USB 2.0
Computer
Compatibility
All Windows O/S, 32-bit and 64-bit,
Mac OSX
Camera Body Size 2 x 4 x 5 inches (50 x 100 x 127 mm)
Mounting T-thread, 2” Nosepiece
Weight 1.8 pounds (0.8 kg)
Backfocus 0.69 inches (17.5 mm
